Zumax OMS2360
Dental Microscope

Servicing and Warranty

U.K. Based servicing, distribution and repair facility ensures prompt response times and peace of mind.

Standard 2 year warranty upgradeable to 5 years when registering your purchase.

For a free no obligation discussion or demonstration simply contact us:

Phone: 01202 601177
Email: [email protected]

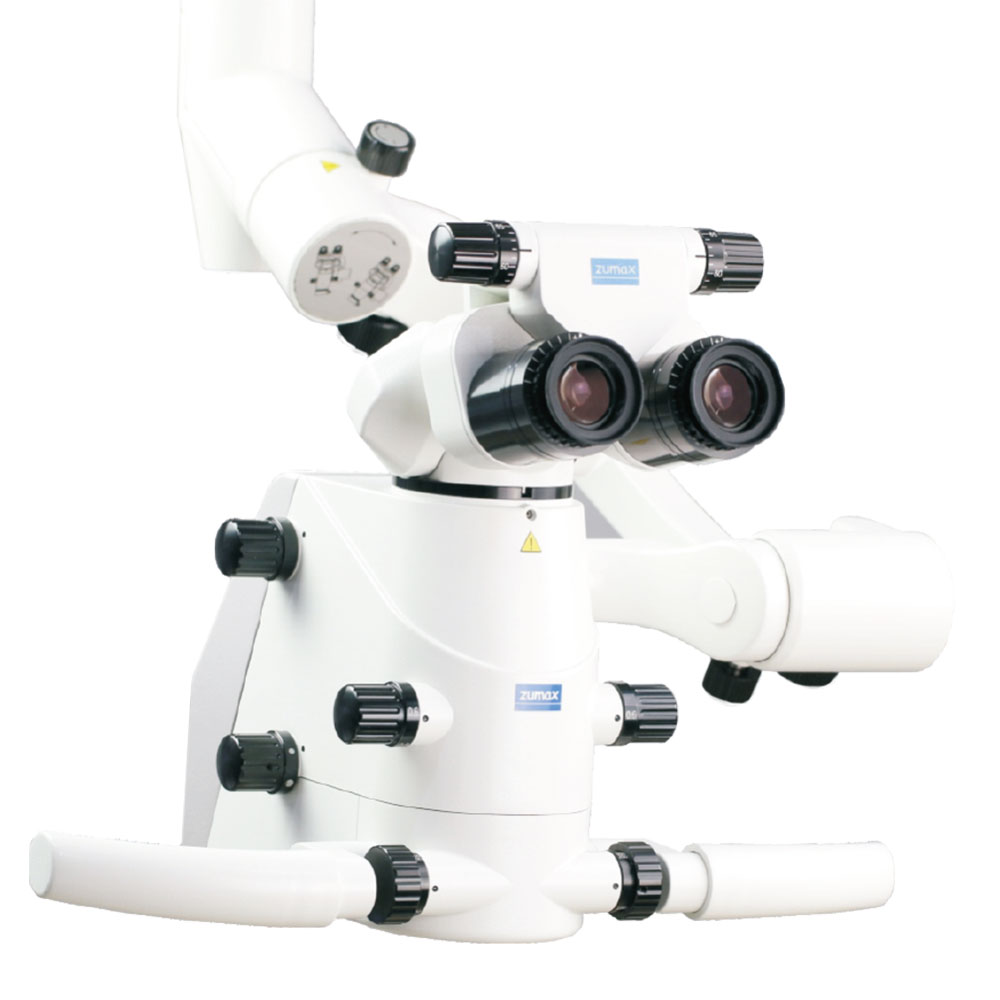

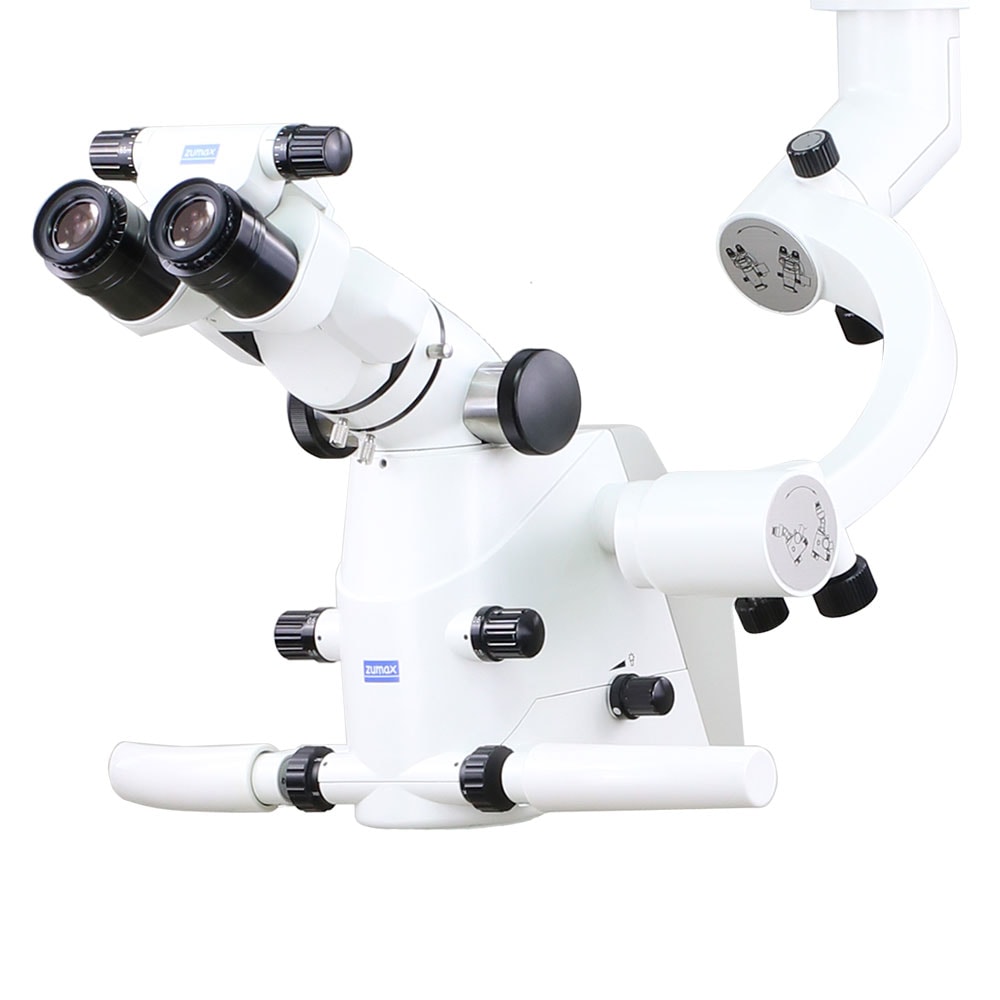

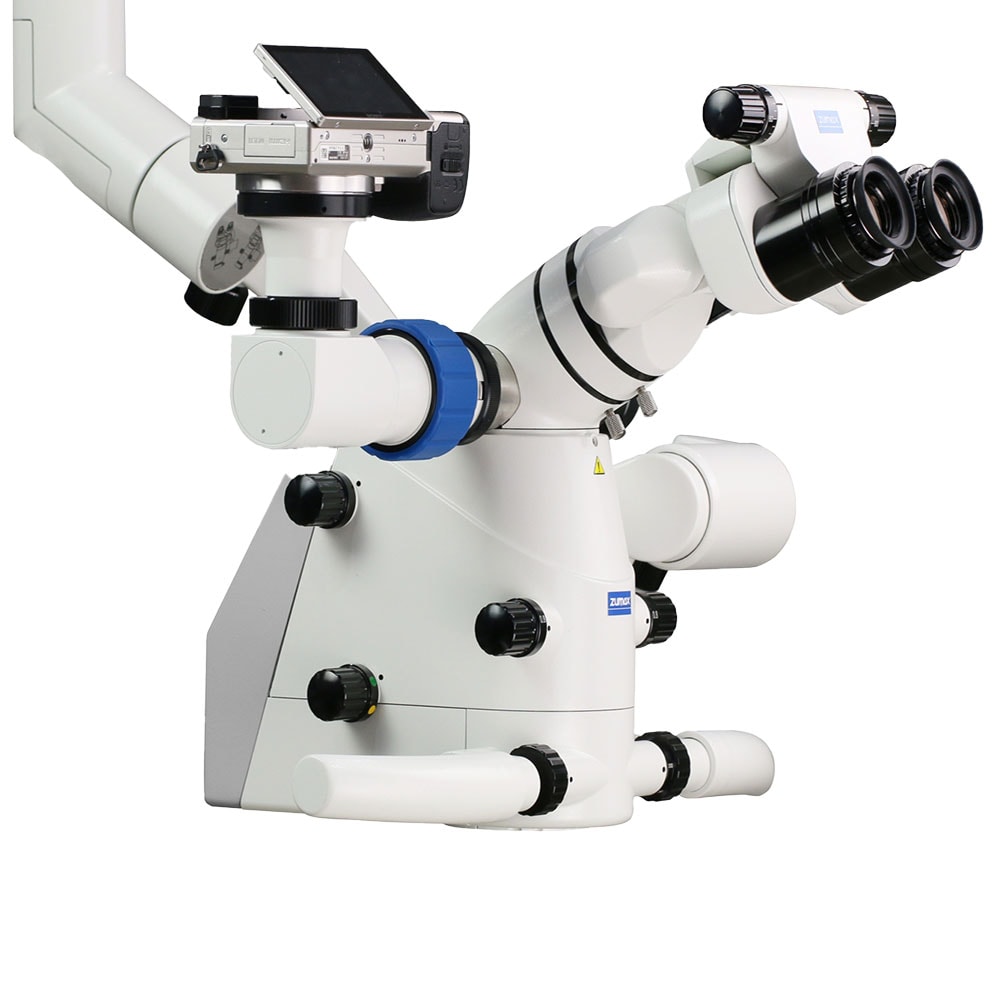

OMS2360 Product Overview

Available with 6-step magnification supported by 10x, 16x and 20x eyepieces to deliver a superb field of view through multi-coated optics reducing optical aberration.

Includes:

  • LED illumination microscope incorporating inclinable binocular head

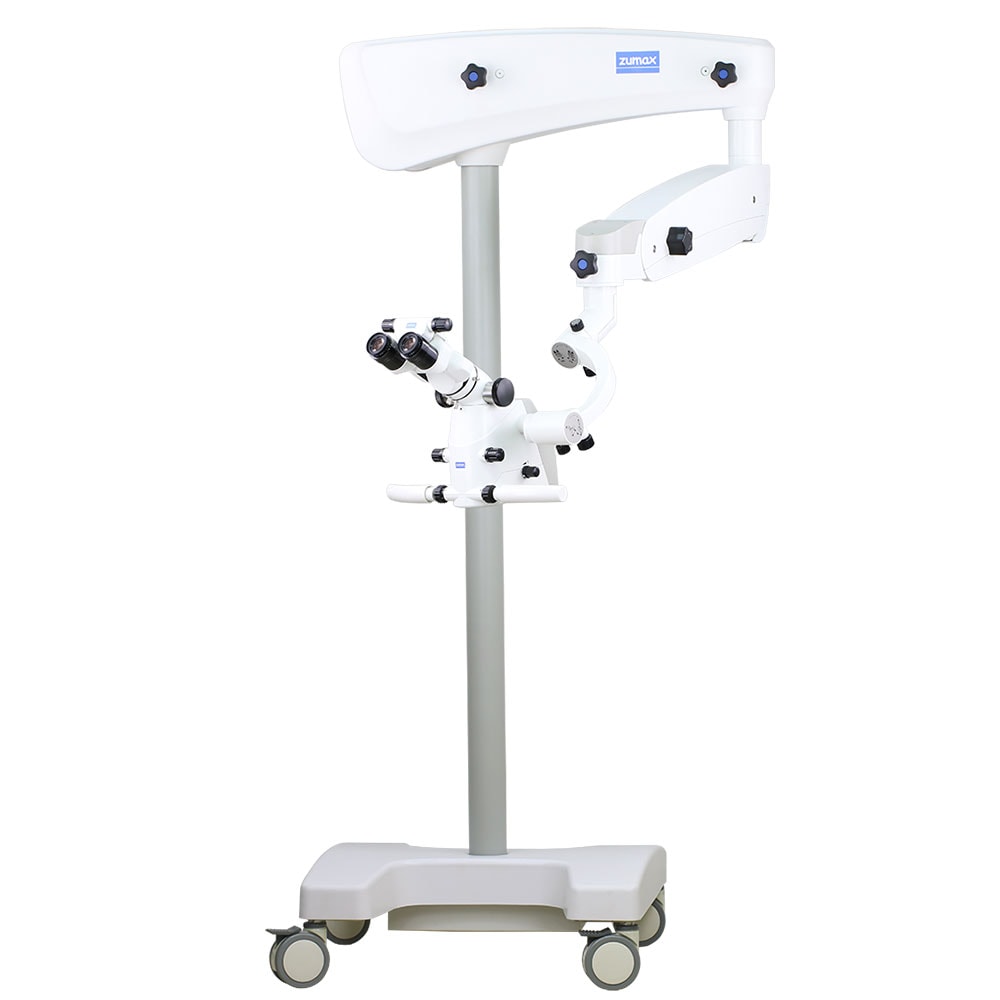

  • Option mounting: mobile base, wall, ceiling or fixed floor
  • Superb, integrated TrueTone™ LED illumination provides excellent colour characteristics
  • The working life of over 20,000 hours of continuous use
  • Super balancing arm ensures an ultra-smooth and fluid movement during repositioning
  • 720mm second arm, optional 1000mm
  • 0 – 180° inclinable binocular head

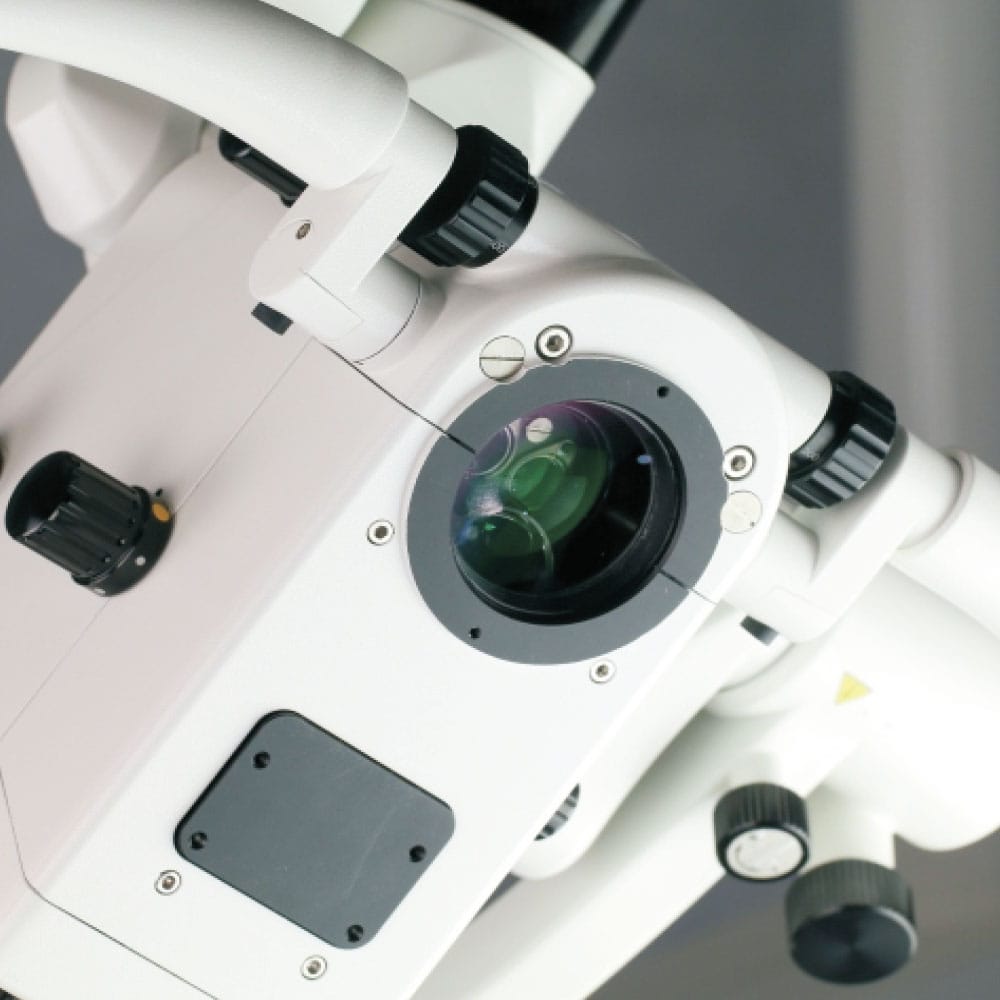

  • VarioDist® objective lens with a variable working distance of 200 – 450mm
  • 6 step magnification changer
  • 12.5x eyepieces
  • The pendulum function allows the viewing lens to remain in the upright position
  • Integrated yellow and green filters with 4 illumination spot sizes
  • Training is made easy, with the optional high definition interface that allows remote viewing
  • Available with high definition camera
  • Excellent ergonomics, easy to use
  • Adaptable, wide choice of options regarding eyepiece magnifications, focal lengths and available mountings ensures all user preferences
  • No replacement bulb costs reduced power consumption and durable construction

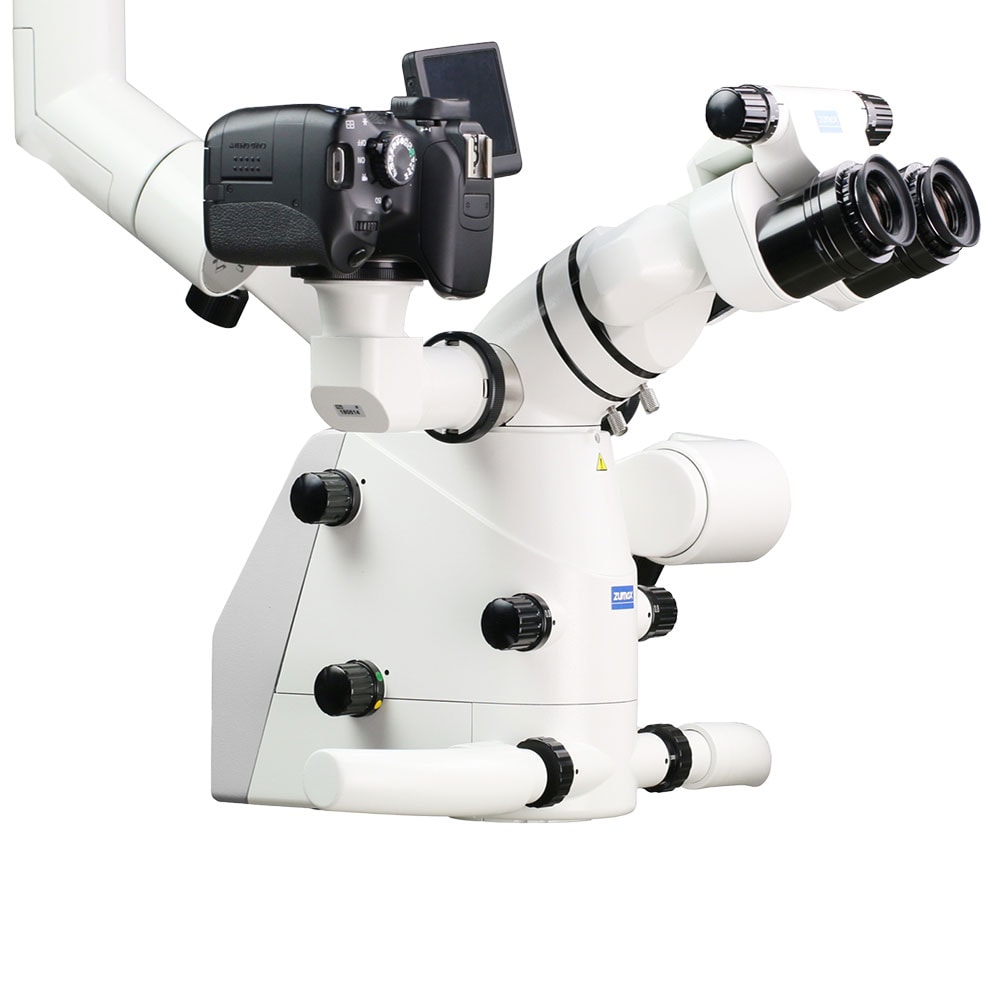

  • Available with an integrated full HD camera with SD memory system
  • Can be supplied with 30 Deg binocular extender and beam splitter
  • Pendulum function allowing 25º left and right inclination
  • Brightness control knob
  • 120º balancing arm
  • Integrated full HD video camera system
  • VarioDist objective lens – variable working distance 200 – 450mm
  • Magnification system: 6 step changer – 0.3x, 0.5x, 0.8x, 1.2x, 2x and 3x
  • Multi-coated, anti reflective optics manufactured in Germany to reduce optical aberration
  • Tubes: 0 – 180º inclinable tube with PD adjustment
  • Eyepieces: 10x, 16x and 20x eyepieces wide field, with integrated eyecups – also suitable for spectacle wearers
  • Fine focus: 12mm range
  • Illumination system: 70,000 lux at working distance of 250mm

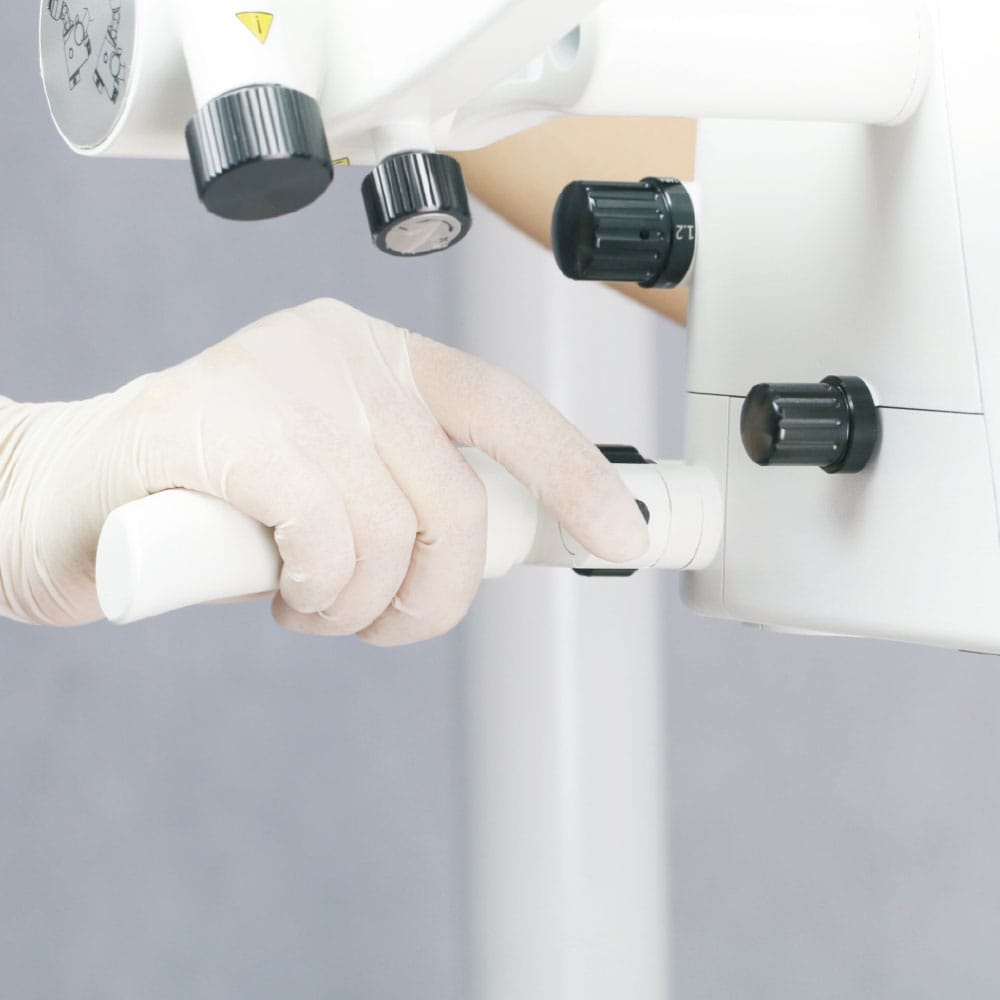

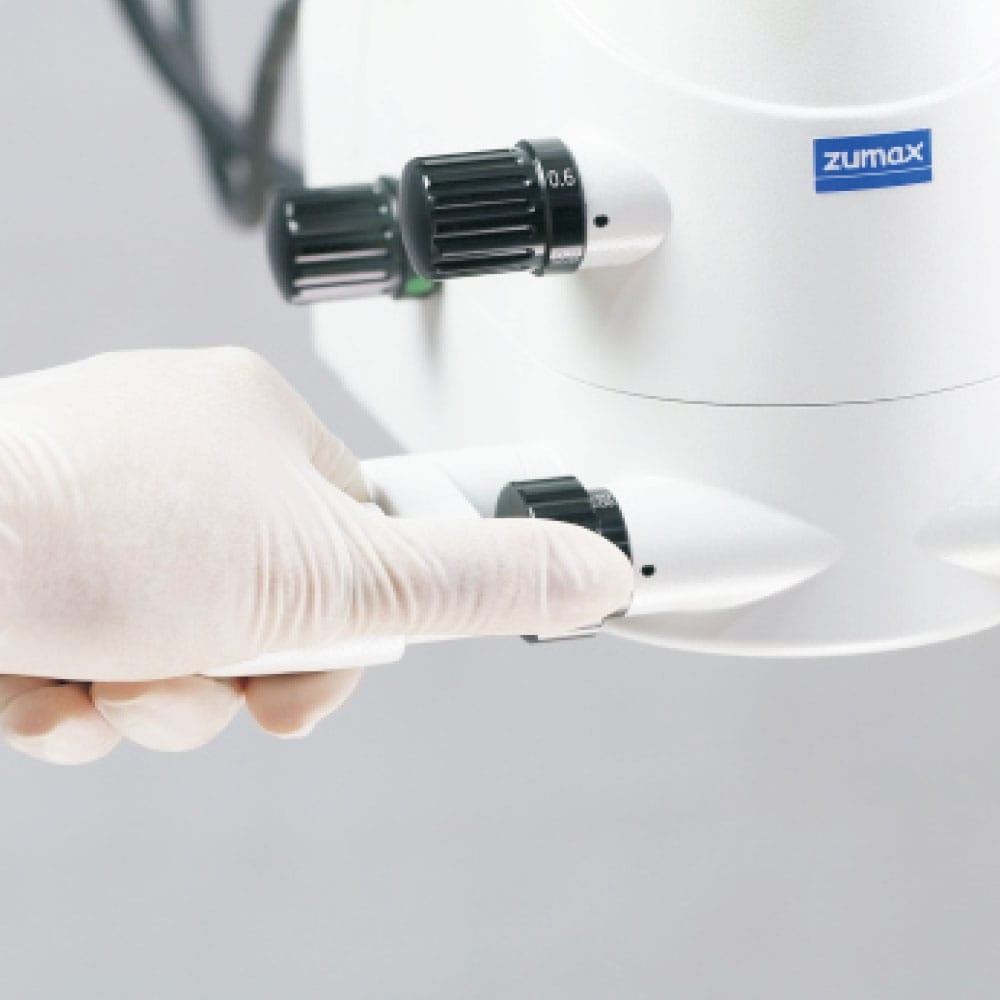

  • Handgrip: 360º rotatable
  • LED guarantee: 10 years

To improve your posture whilst using our dental microscopes we can offer our superb, ergonomic Salli Dental Chairs.

Servicing and Warranty

U.K. Based servicing, distribution and repair facility ensures prompt response times and peace of mind.

Standard 2 year warranty upgradeable to 5 years when registering your purchase.

For a free no obligation discussion or demonstration simply contact us:

Phone: 01202 601177
Email: [email protected]

Dental Microscopes Model Comparison

Model 1950 2350 2000 2050 2360 2380 3200
Specification
Magnification 5 Step 5-6 Step 5 Step Continuous 6 Step Manual Motorized
High Definition Camera - Optional - - Optional Optional Optional
Objective Lens F250mm F250mm - - - - -
Vario Dist Lens Optional Optional 210 - 460mm 190 - 480mm 200 - 450mm 200 - 450mm 200 - 450mm
Illumination System - Lux @ 250mm Working Distance 50,000 60,000 55,000 60,000 70,000 70,000 80,000
0 - 180 Degree Inclinable Binocular
Eyepiece Magnification - 12.5x
PD Adjusting Knob
Integrated Yellow/ Green Filter
Handgrip 360 Degree Rotatable
Brightness Control Knob
120 Degree Balancing Arm
Pendulum Function - Right & Left Inclination

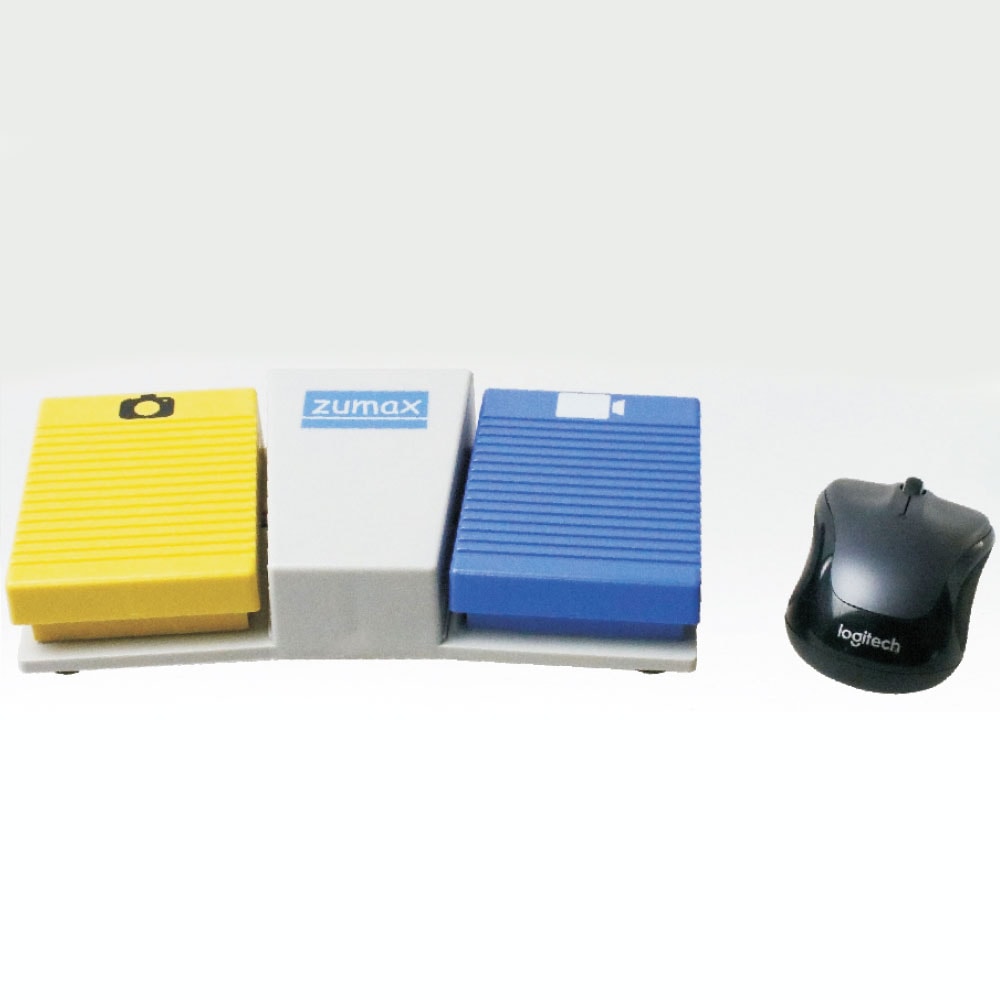

Foot Pedal Control Optional Optional
BriPlus Illumination System
Smart Mon LCD Display
Free Mov Electromagnetic System
Magnetic Stops
Mounting
Floor Optional Optional
Base Optional Optional
Ceiling Optional Optional
Wall Optional Optional
