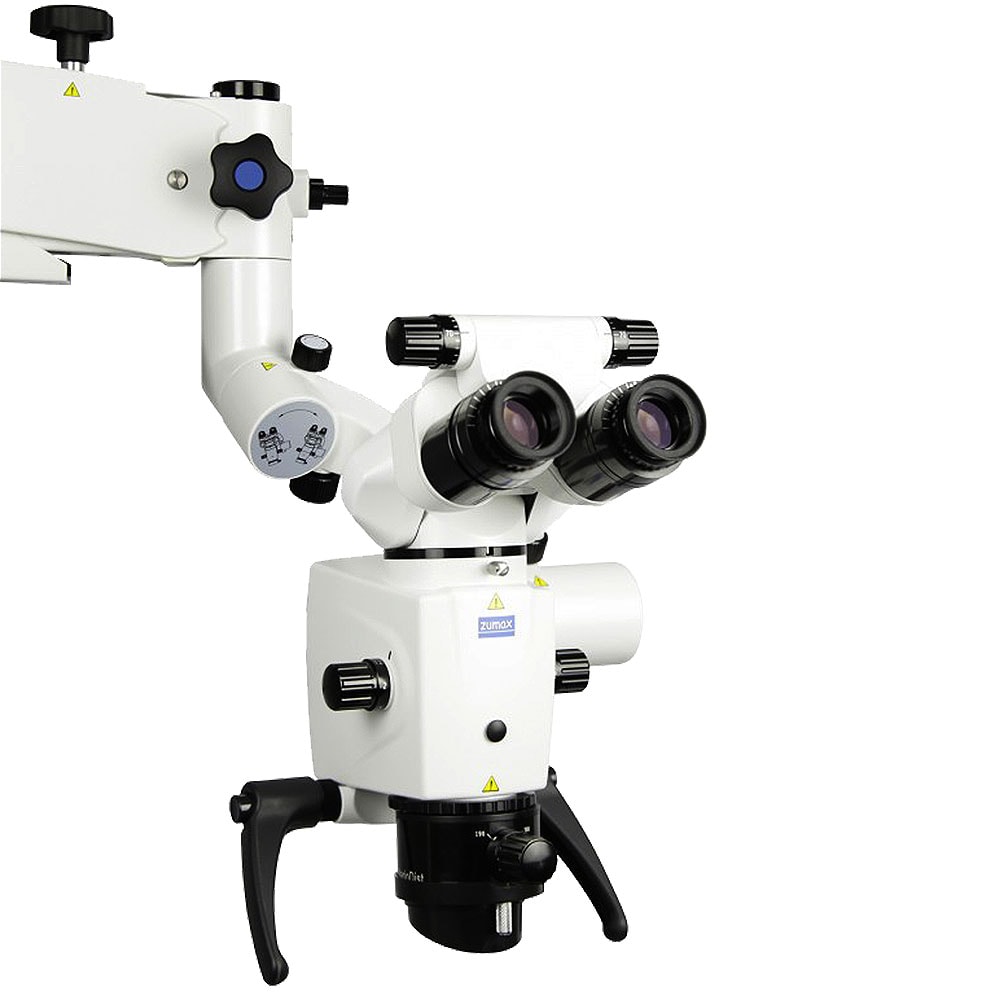

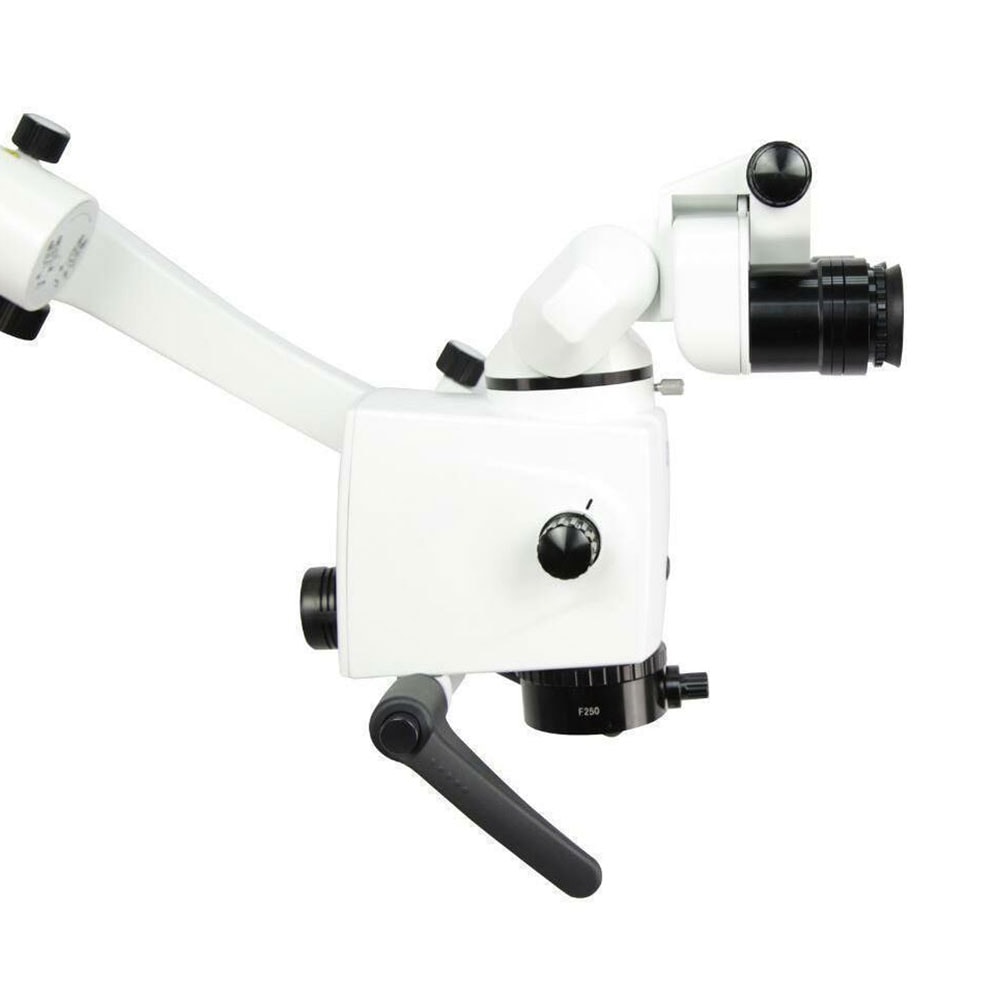

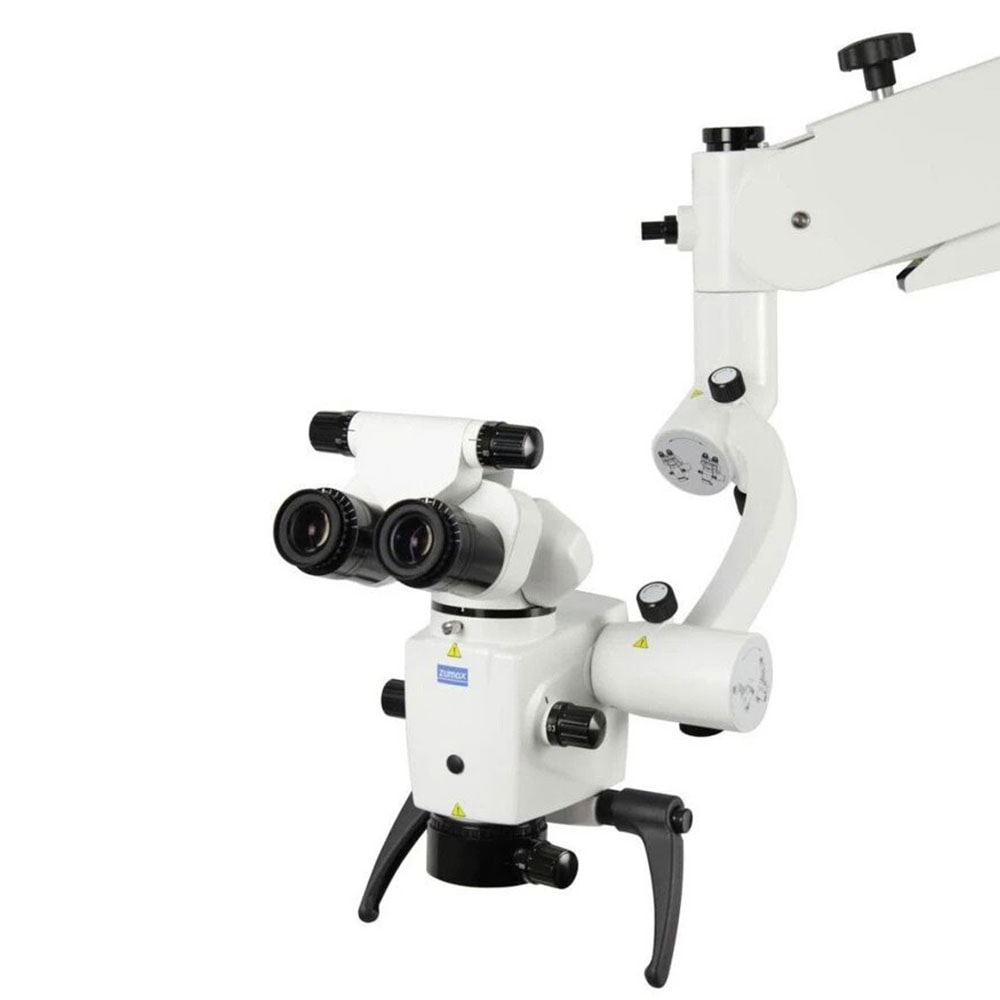

OMS2350 Product Overview
This is the best-selling model within the Zumax range and offers all the benefits of the OMS1950 but offers a 6-step magnification facility, optional HD video camera system and VarioDist objective lens.
Includes:
- LED illumination microscope incorporating inclinable binocular head

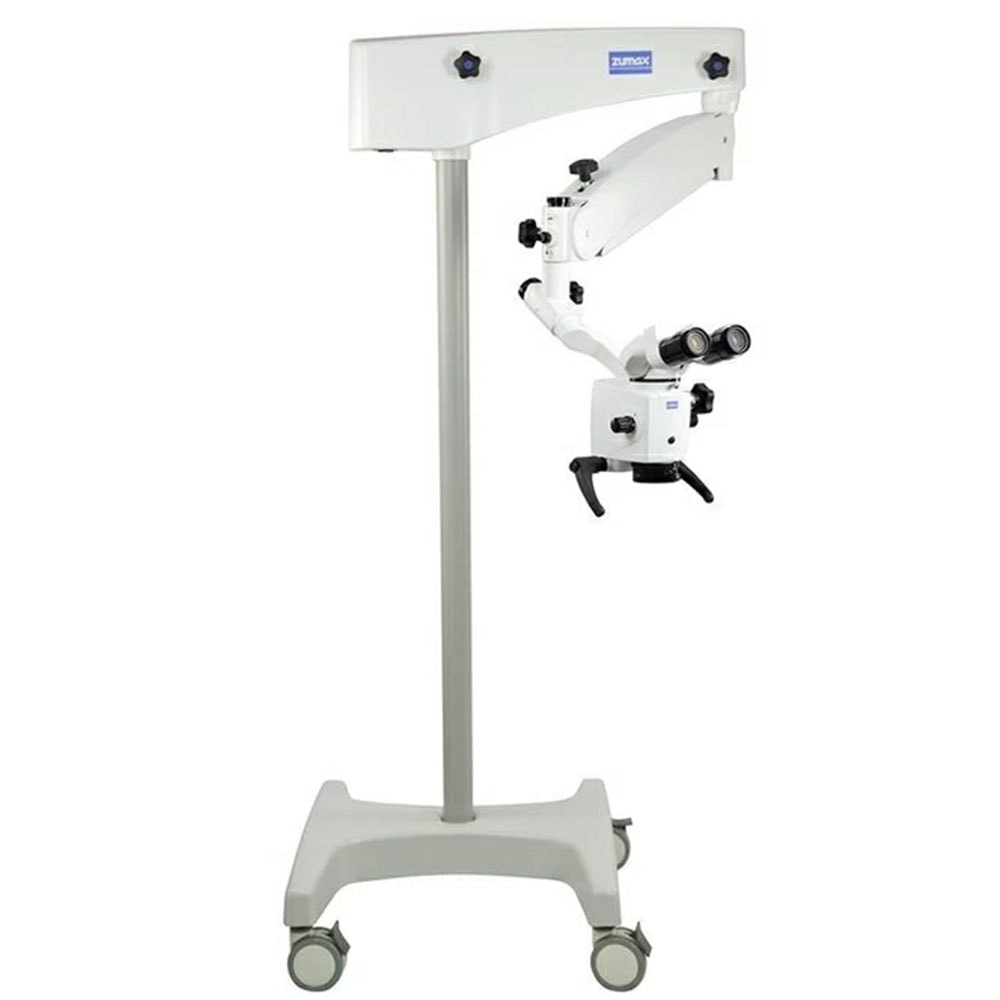

- Option of mounting: mobile base, wall, ceiling or fixed floor

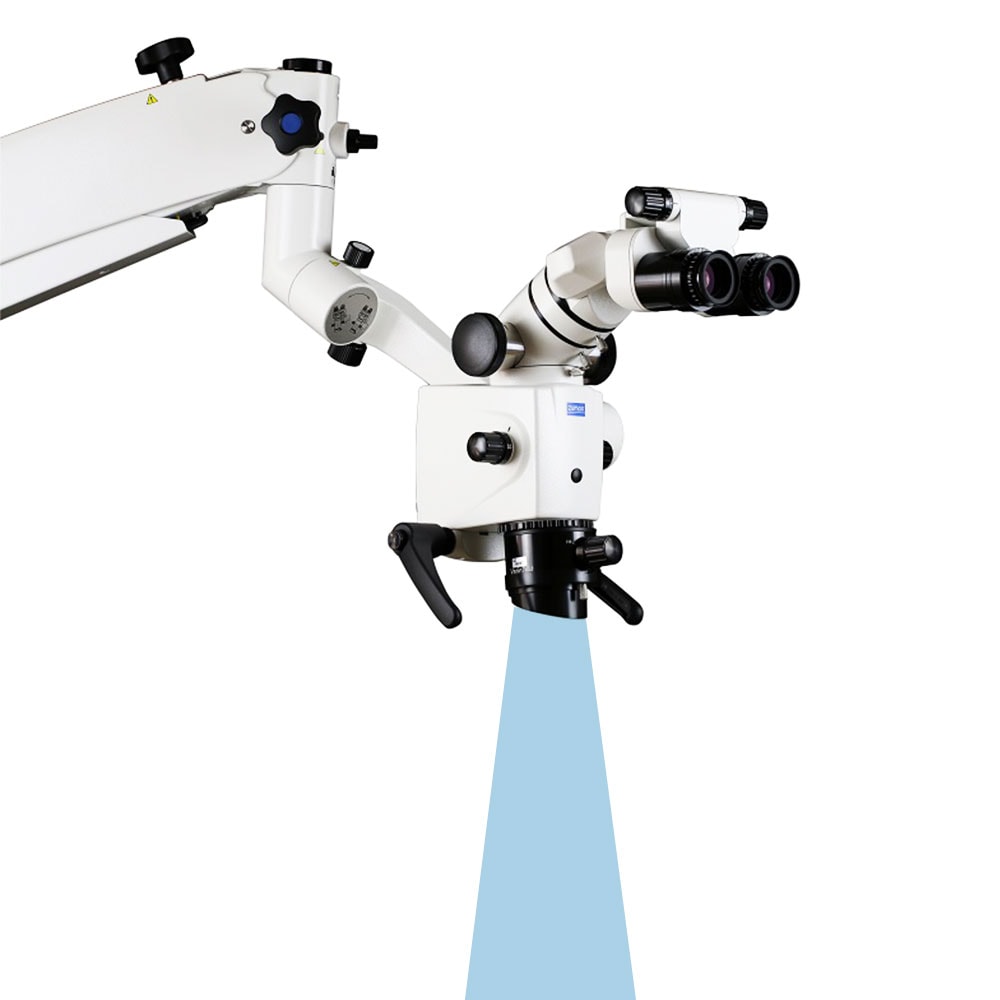

- Superb, integrated TrueTone™ LED illumination provides excellent colour characteristics
- The working life of over 20,000 hours of continuous use
- The balancing arm ensures an ultra-smooth and fluid movement during repositioning
- 650mm second arm, optional 950mm
- 0 – 180° inclinable binocular head
- PD adjusting knob (optional)

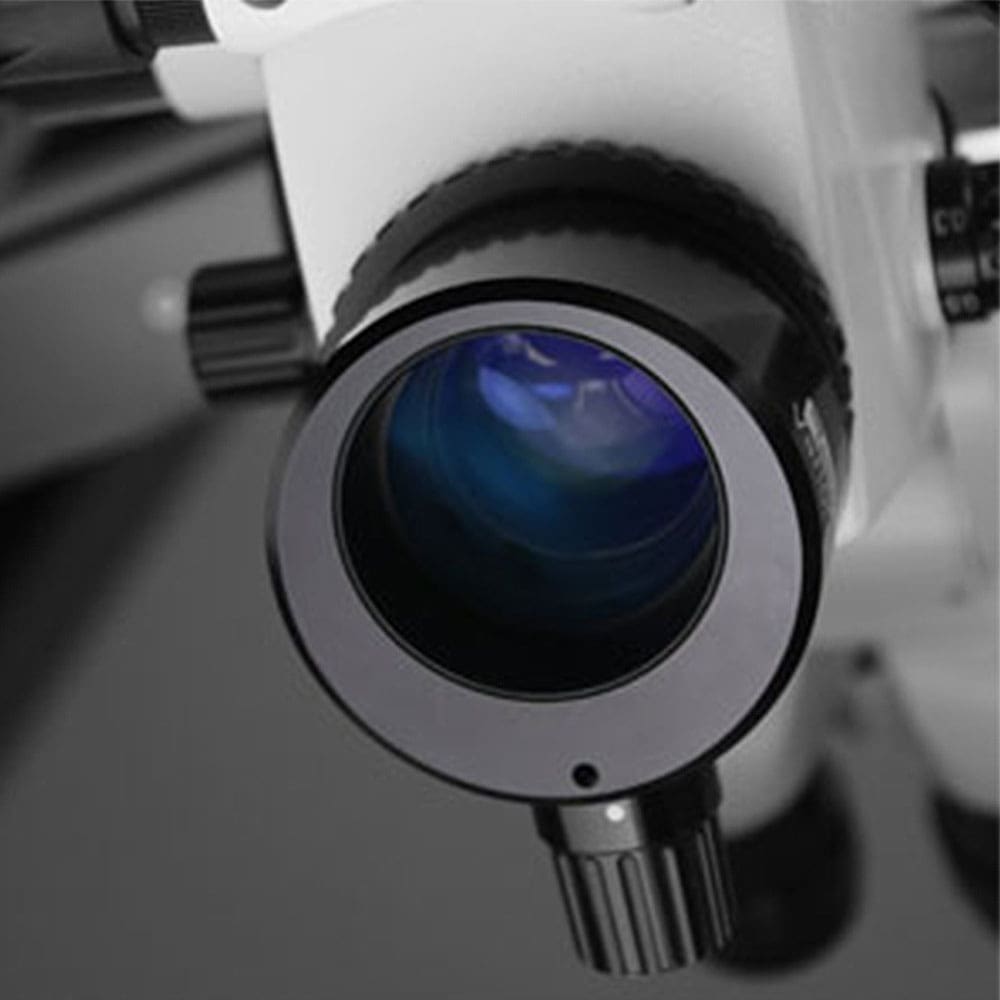

- Optional VarioDist® objective lens with a variable working distance of 190 – 300mm optional
- 6 step magnification changer
- 12.5x magnification eyepiece as standard, available with optional 10x, 16x or 20x
- Integrated yellow and green filter
- The pendulum function allows the viewing lens to remain in the upright position

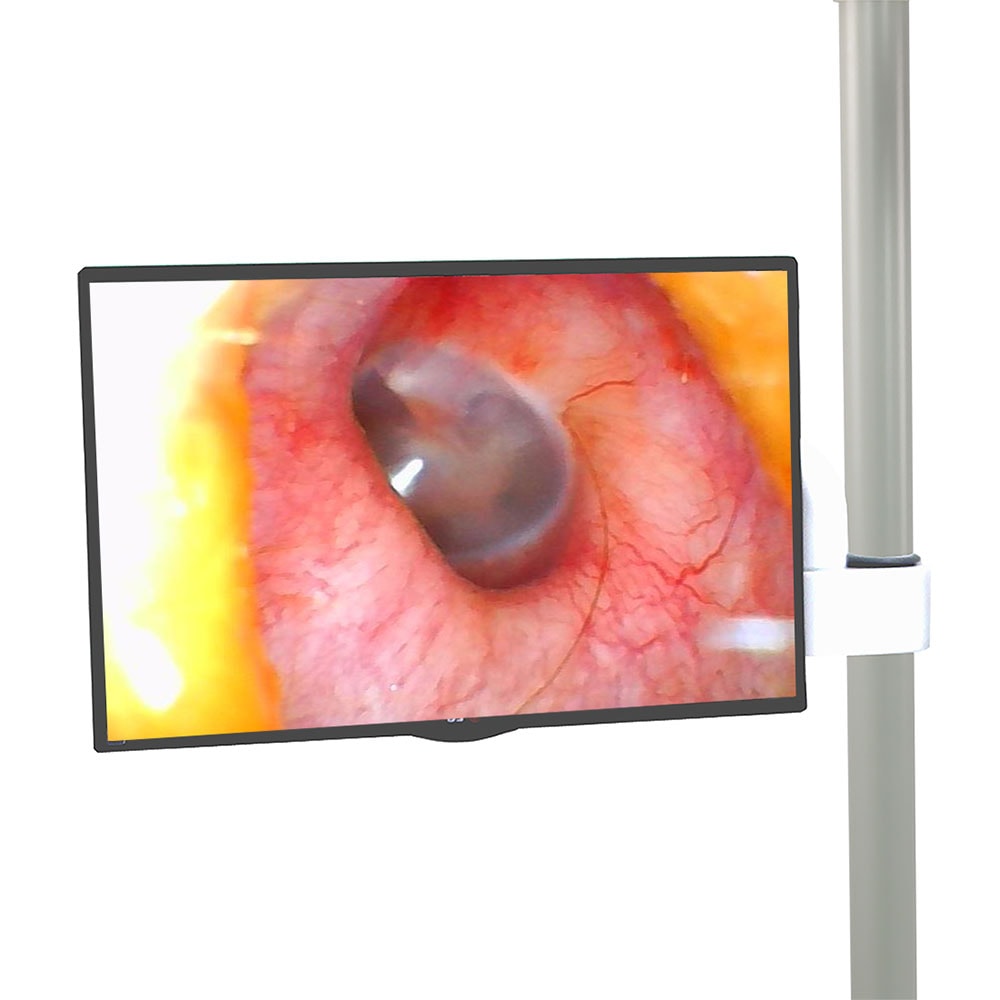

- Training is made easy, with the optional high-definition interface that allows remote viewing
- Available with an optional high-definition camera
- Excellent ergonomics, easy to use
- Adaptable, wide choice of options regarding eyepiece magnifications, focal lengths and available mountings ensures all user preferences
- No replacement bulb costs reduced power consumption and durable construction
- Available with integrated 3D full HD camera, enabling the transfer of 2D and 3D images as well as real-time 3D streaming during procedures

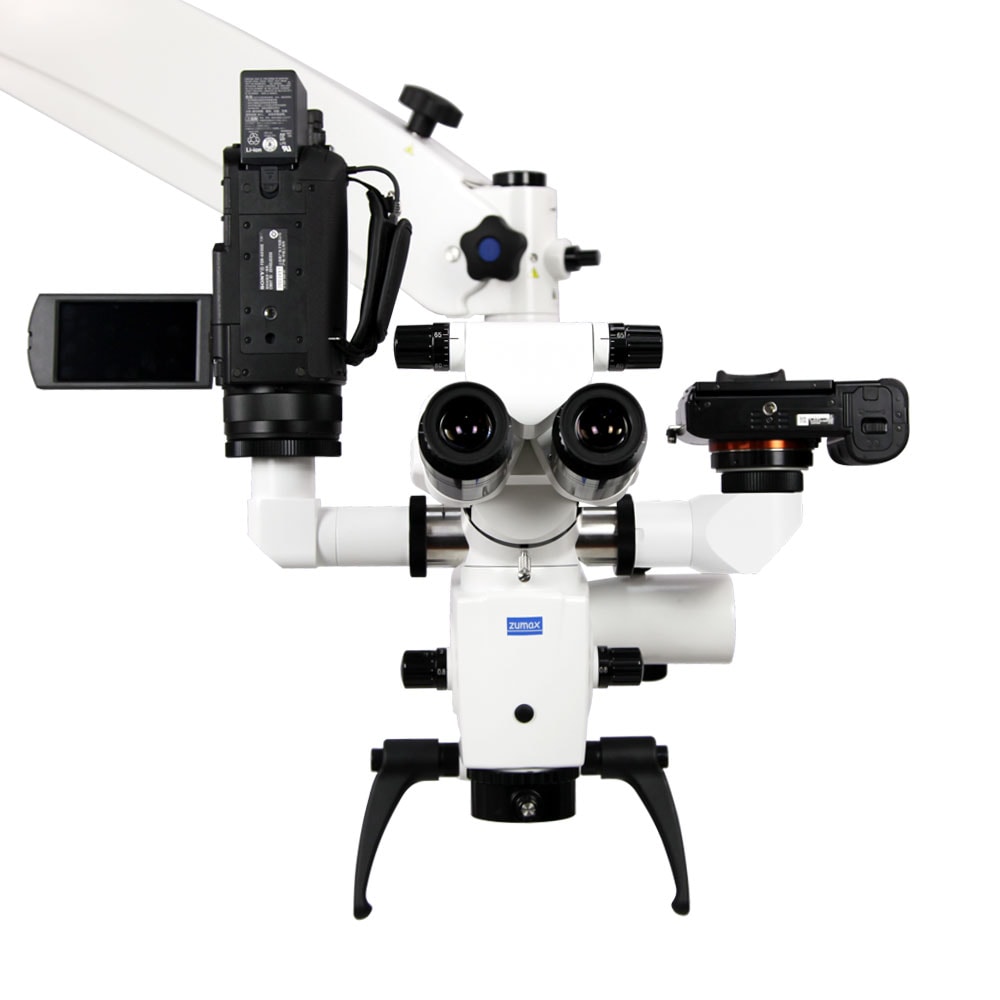

- Can be supplied with beam splitter for use with digital camera or camcorder
- Pendulum function allowing 25º left and right inclination
- Brightness control knob
- 120º balancing arm
- Available with high definition camera
- VarioDist objective lens – variable working distance 190 – 300mm
- Magnification system: 6 step changer – 0.33x, 0.5x, 0.8x, 1.22x, 2x and 3x
- Multi-coated, anti reflective optics manufactured in Germany to reduce optical aberration
- Tubes: 0 – 180º inclinable tube with PD adjustment

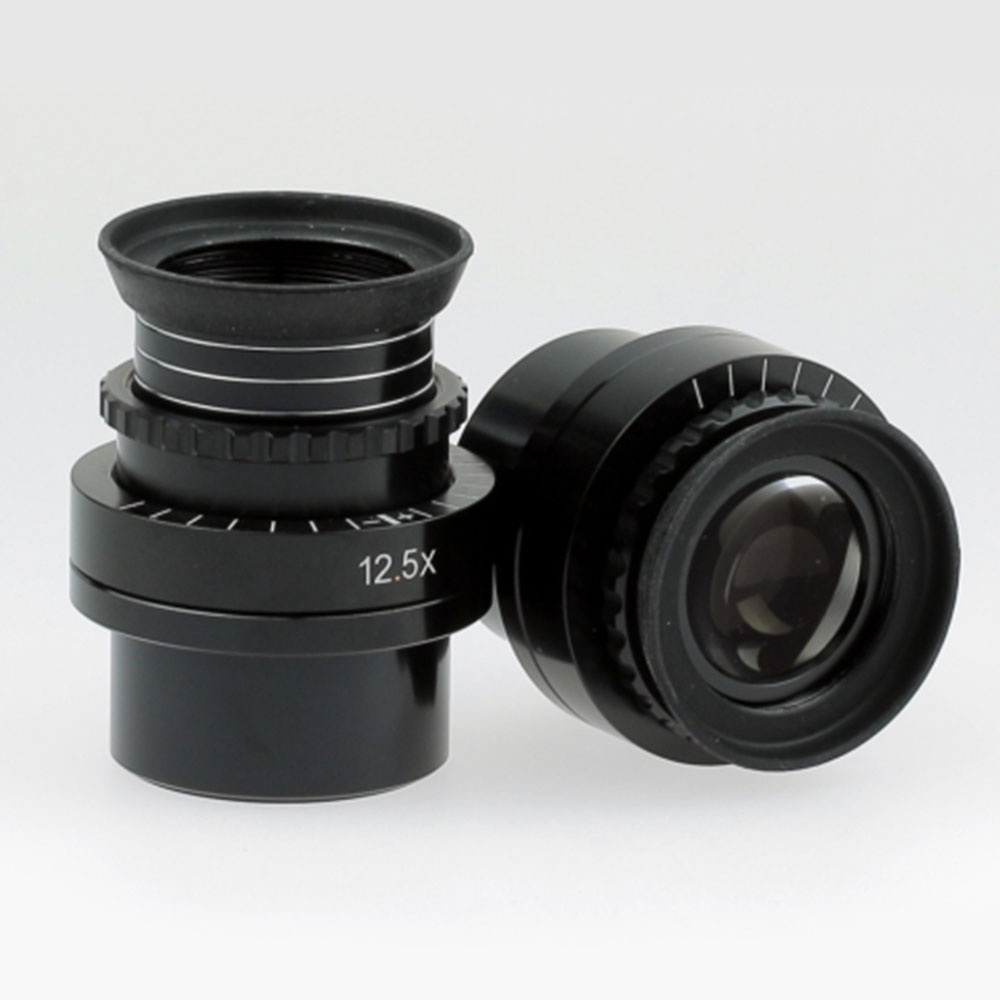

- Eyepieces: 12.5x wide field, with integrated eyecups – also suitable for spectacle wearers
- Fine focus: 12mm range
- Illumination system: 60,000 lux
- Handgrip: rotatable
- LED guarantee: 10 years
To improve your posture whilst using our dental microscopes we can offer our superb, ergonomic Salli Dental Chairs.
Servicing and Warranty
U.K. Based servicing, distribution and repair facility ensures prompt response times and peace of mind.
Standard 2 year warranty upgradeable to 5 years when registering your purchase.
For a free no obligation discussion or demonstration simply contact us:
Phone: 01202 601177 Email: [email protected]
Dental Microscopes Model Comparison
| Model | 1950 | 2350 | 2360 | 2380 | 3200 |
|---|---|---|---|---|---|
| Specification | |||||
| Magnification | 5 Step | 5-6 Step | 6 Step | Manual | Motorized |
| High Definition Camera | - | Optional | Optional | Optional | Optional |
| Objective Lens | F250mm | F250mm | - | - | - |
| Vario Dist Lens | Optional | Optional | 200 - 450mm | 200 - 450mm | 200 - 450mm |
| Illumination System - Lux @ 250mm Working Distance | 50,000 | 60,000 | 70,000 | 70,000 | 80,000 |
| 0 - 180 Degree Inclinable Binocular | ✔ | ✔ | ✔ | ✔ | ✔ |
| Eyepiece Magnification - 12.5x | ✔ | ✔ | ✔ | ✔ | ✔ |
| PD Adjusting Knob | ✔ | ✔ | ✔ | ✔ | ✔ |
| Integrated Yellow/ Green Filter | ✔ | ✔ | ✔ | ✔ | ✔ |
| Handgrip 360 Degree Rotatable | ✔ | ✔ | ✔ | ✔ | |
| Brightness Control Knob | ✔ | ✔ | ✔ | ✔ | |
| 120 Degree Balancing Arm | ✔ | ✔ | ✔ | ✔ | |
| Pendulum Function - Right & Left Inclination | ✔ | ✔ | ✔ | ✔ | |

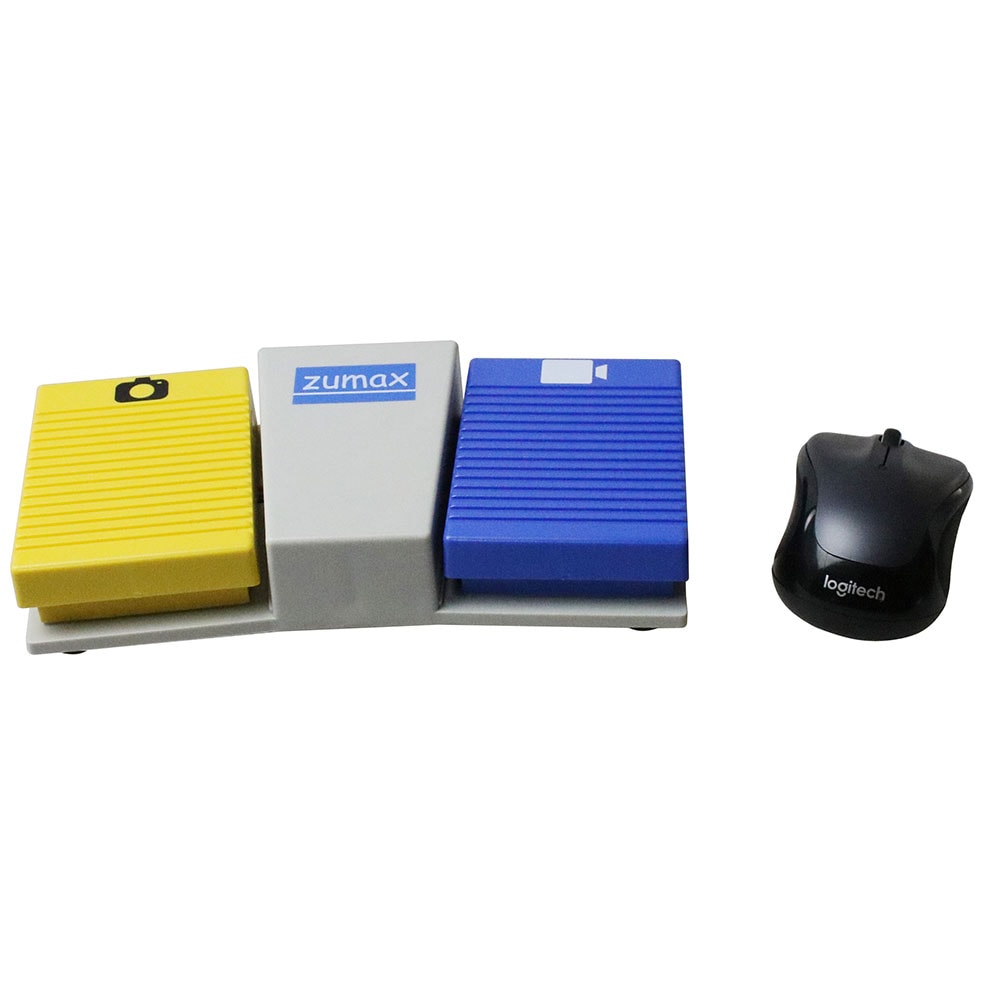

| Foot Pedal Control | ✔ | ✔ | |||
| BriPlus Illumination System | ✔ | ||||
| Smart Mon LCD Display | ✔ | ||||
| Free Mov Electromagnetic System | ✔ | ||||
| Magnetic Stops | ✔ | ||||
| Mounting | |||||
| Floor | ✔ | ✔ | ✔ | ✔ | ✔ |
| Base | ✔ | ✔ | ✔ | ✔ | ✔ |
| Ceiling | ✔ | ✔ | ✔ | ✔ | |
| Wall | ✔ | ✔ | ✔ | ✔ |
