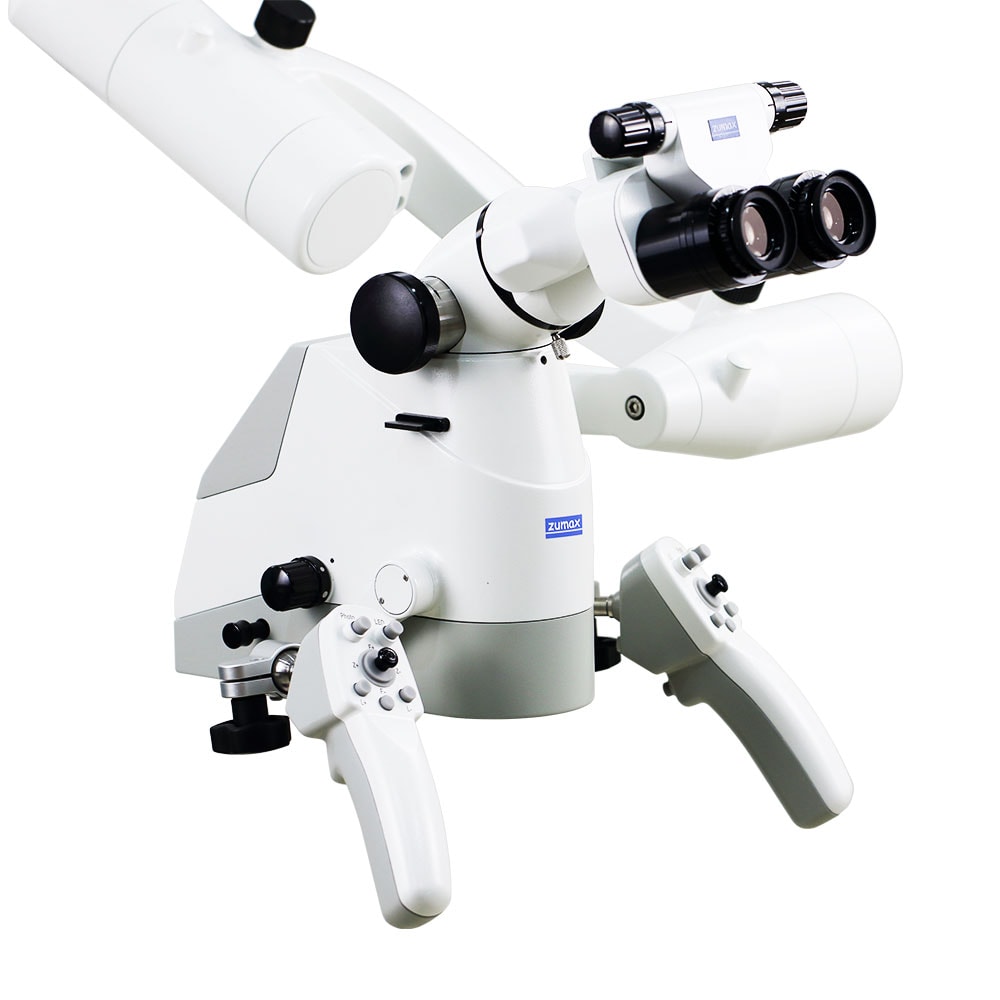

Zumax OMS3200
ENT Microscope

Product Overview

The flagship model of the Zumax (OMS3200 ENT Microscope) range offers motorised zoom magnification enhanced with the FreeMov Electromagnetic System, delivering superb manoeuvrability of optics.

Suitable for theatre use.

Includes:

LED illumination microscope incorporating inclinable binocular head
Option mounting: mobile base, wall, ceiling or fixed floor

Enquire Now

FreeMov® electromagnetic system 3 or 6 magnetic brakes
Magnetic brakes deliver easy and precise positioning
BriPlus illumination system – 30% auto-increased intensity at maximum magnification > 105,000 lux

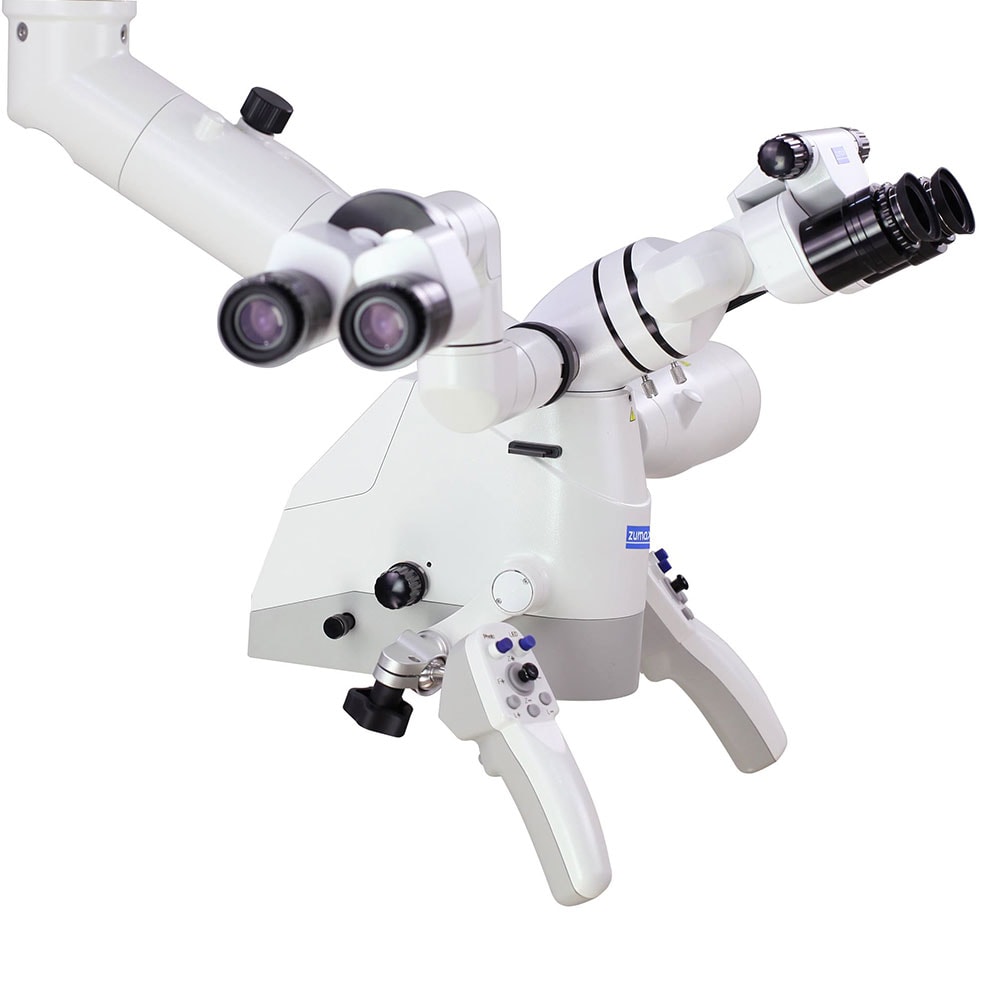

90° inclined binocular, 0 – 180° available as an option

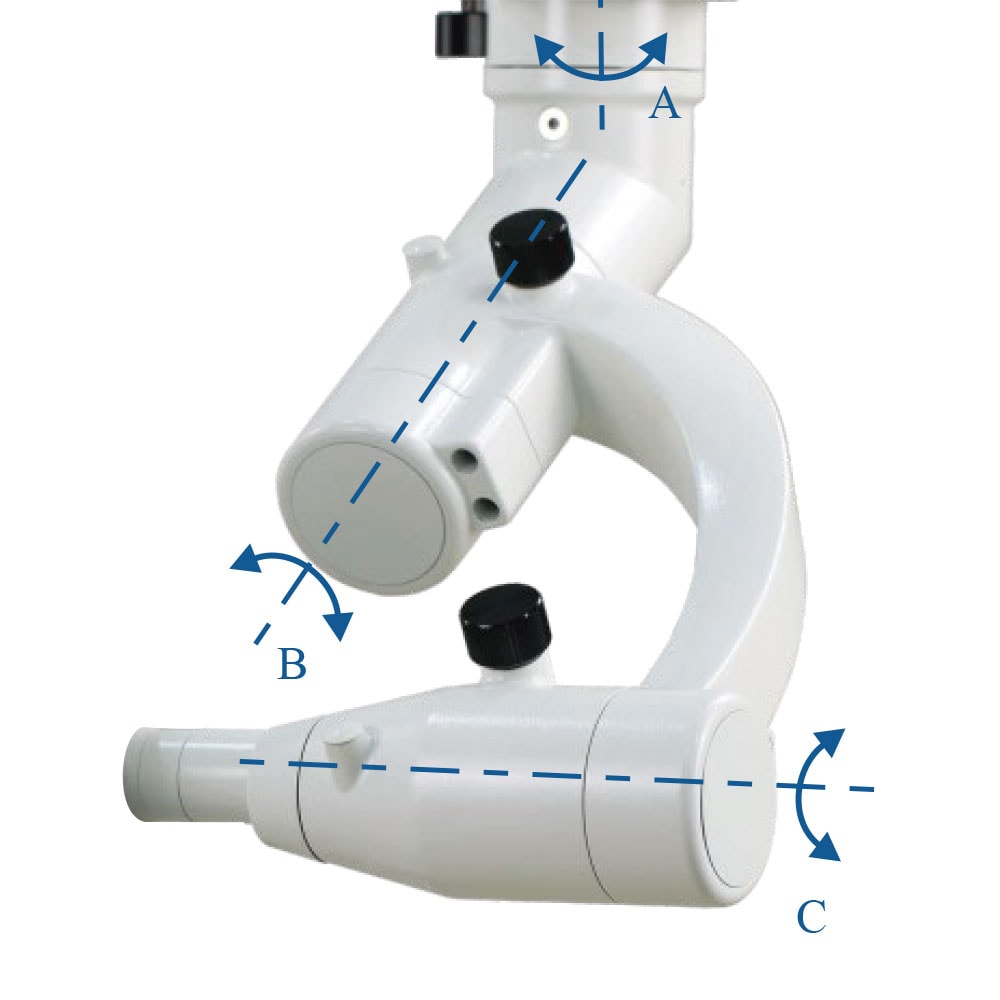

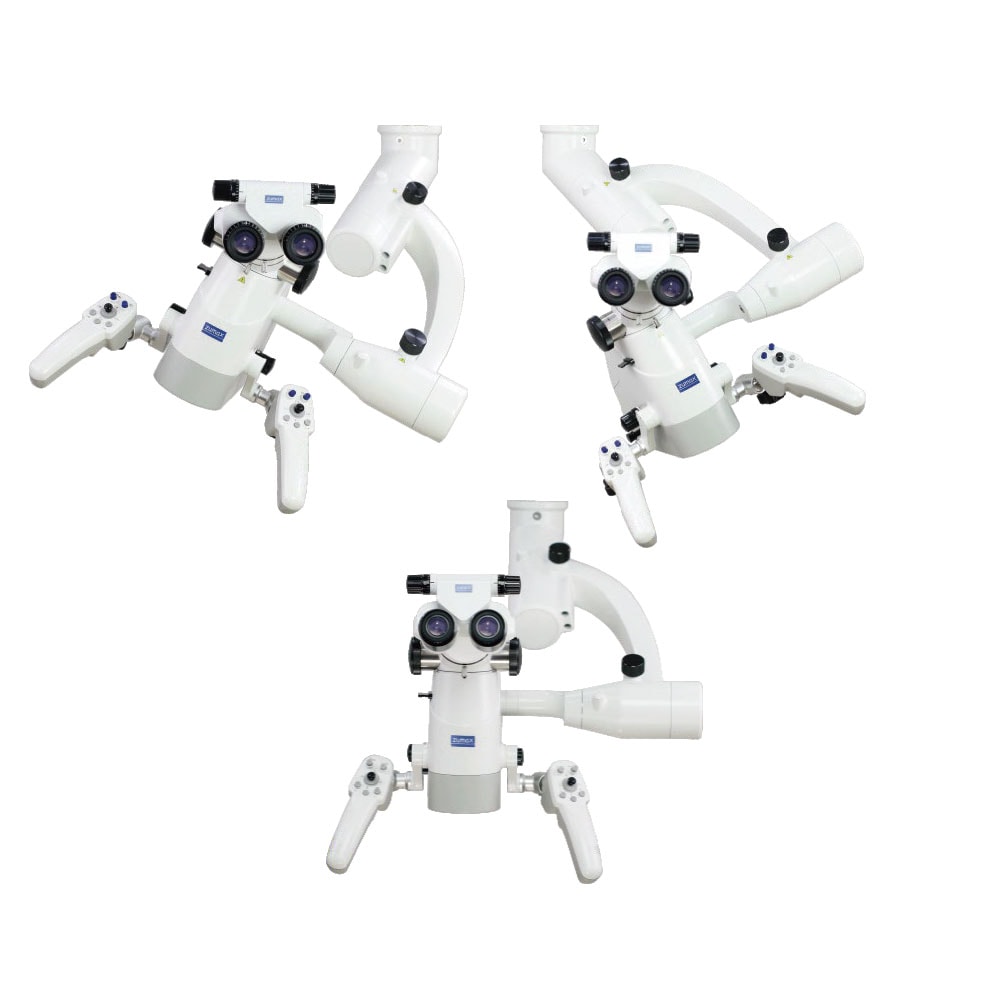

The pendulum function allows the viewing lens to remain in the upright position

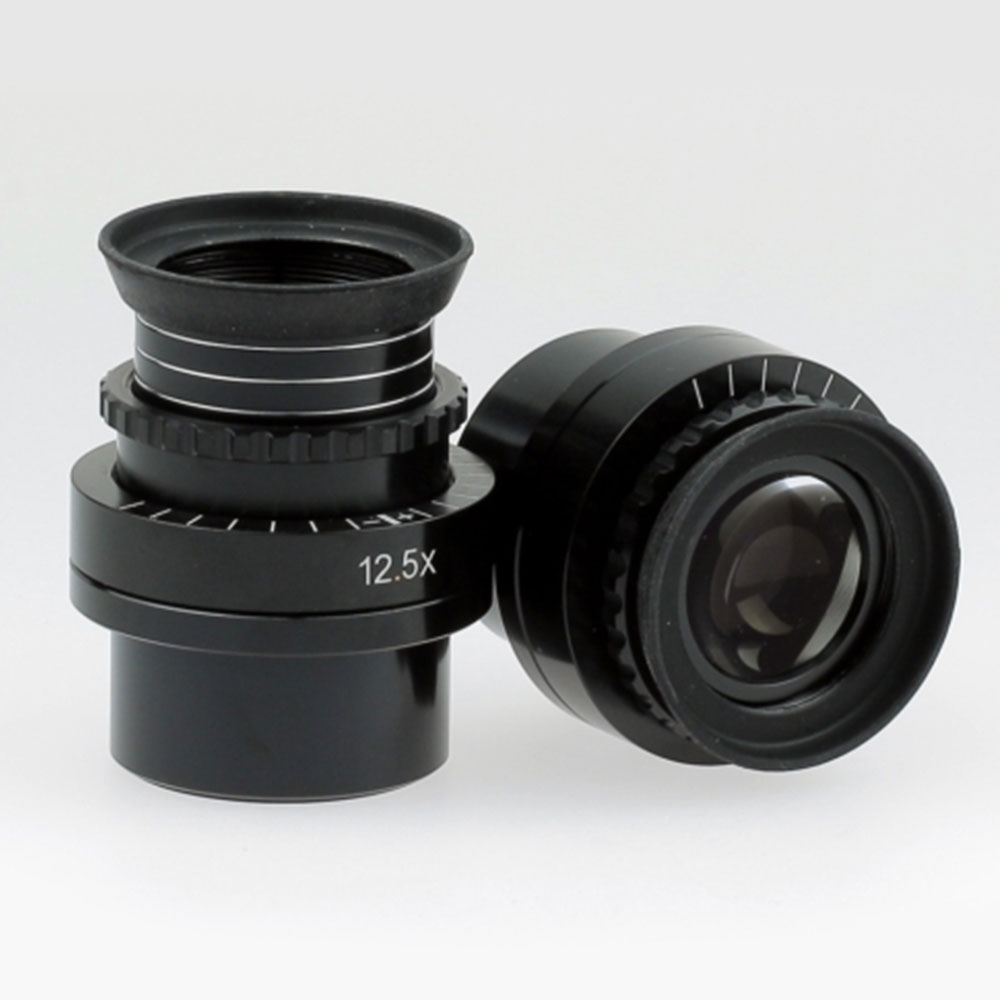

12.5x eyepieces with an optional target reticle
Motorized magnification of 1.8x to 20x
Diameter of field view 11.6 – 124mm

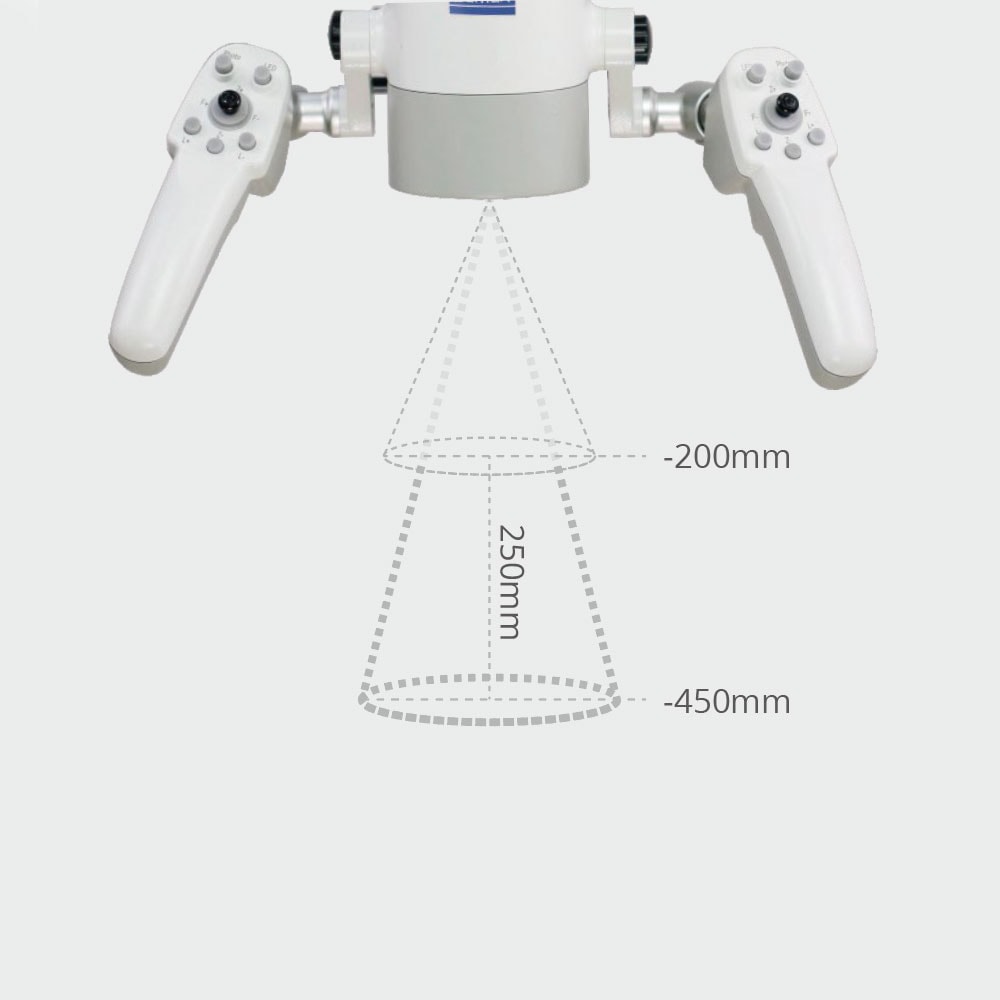

VarioDist® objective lens with a variable working distance of 200 – 450mm
SmartMon LCD display, showing current working distance, zoom factor, magnification, measurement factor, LED brightness
Back up light source guards against accidental shutdown of main LED
Integrated yellow and green filter with 4 illumination spot sizes
Optional integrated laser filters
Integrated full HD camera system supported by multiple shooting methods by wireless control set or photo/ video button
Micro 3D twin full HD 1080P camera system available as an option
Fluo-Det fluorescent module option available

FreeMov® electromagnetic system with 3 or 6 magnetic brakes
Magnetic brakes deliver easy and precise positioning
BriPlus illumination system – 30% auto-increased intensity at maximum magnification > 105,000 lux
0 – 180° inclinable binocular head
Pendulum function allows viewing lens to remain in the upright position
12.5x eyepieces with optional target reticle
Motorized zoom magnification of 1.8x to 20x
Diameter of field view 11.6 – 124mm
VarioDist® objective lens with variable working distance of 200 – 450mm
SmartMon LCD display, showing current working distance, zoom factor, magnification, measurement factor, LED brightness
Back up light source guards against accidental shutdown of main LED
Integrated yellow and green filter with 4 illumination spot sizes
Optional integrated laser filters
Integrated full HD camera system supported by multiple shooting methods by wireless control set or photo/ video button
Micro 3D twin full HD 1080P camera system available as an option
Fluo-Det fluorescent module
LED guarantee: 10 years

ENT Microscopes Model Comparison

Model	1950	2350	2360	2380	3200
Specification
Magnification	5 Step	3, 5, 6 Step	6 Step	Continues Range	Motorized
High Definition Camera	-	Optional	Optional	Optional	Optional
Objective Lens	F250mm	F250mm	-	-	-
Vario Dist Lens	Optional	Optional	200 - 450mm	200 - 450mm	200 - 450mm
Illumination System - Lux @ 250mm Working Distance	50,000	60,000	70,000	70,000	80,000
0 - 180 Degree Inclinable Binocular	✔	Optional	Optional	Optional	Optional
90 Degree Inclined Binocular	✔	Optional	-	-	-
Eyepiece Magnification - 12.5x	✔	✔	✔	✔	✔
PD Adjusting Knob	✔	✔	✔	✔	✔
Integrated Yellow/ Green Filter	✔	✔	✔	✔	✔
Handgrip 360 Degree Rotatable	✔	✔	✔	✔	✔
Brightness Control Knob		✔	✔	✔	✔
120 Degree Balancing Arm		Optional	✔	✔	✔
Pendulum Function - Right & Left Inclination		✔	✔	✔	✔
Smart Mon LCD Display					✔
Foot Pedal Control					✔
Free Mov Electromagnetic System					✔
Magnetic Stops					✔
Mounting

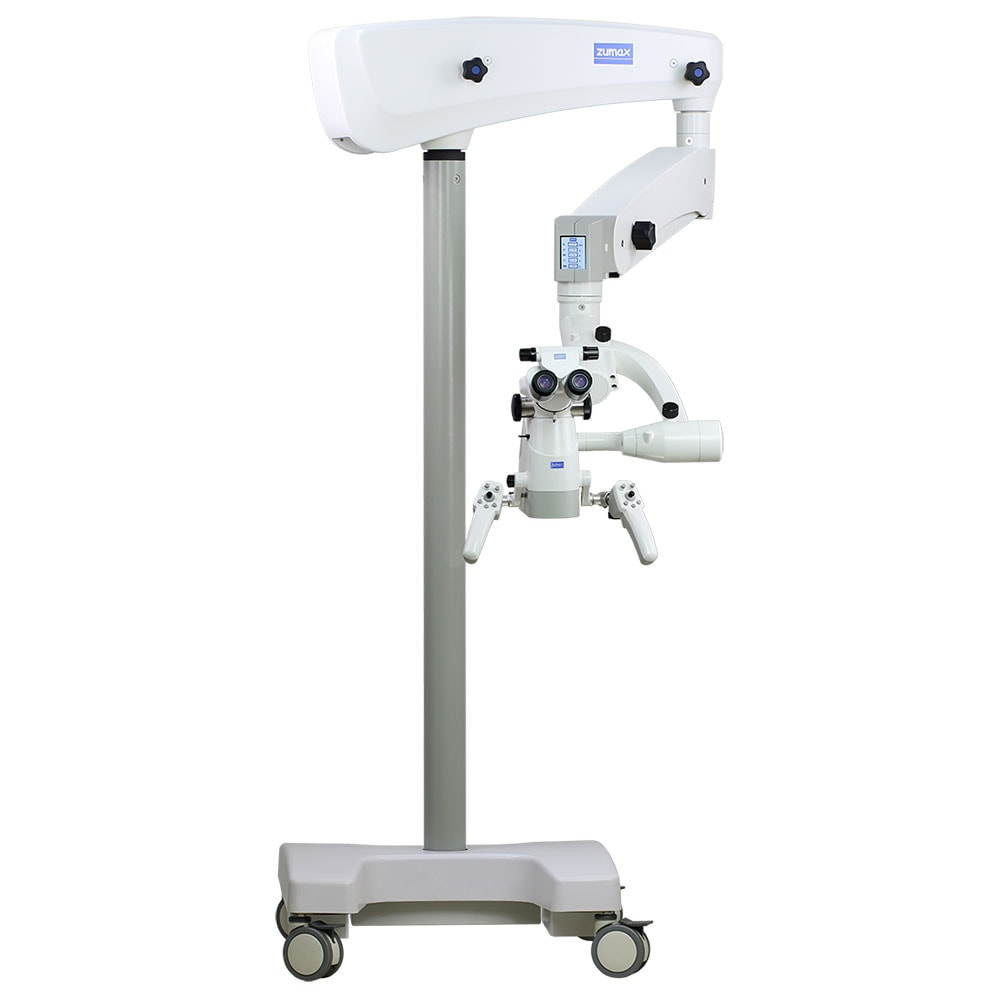

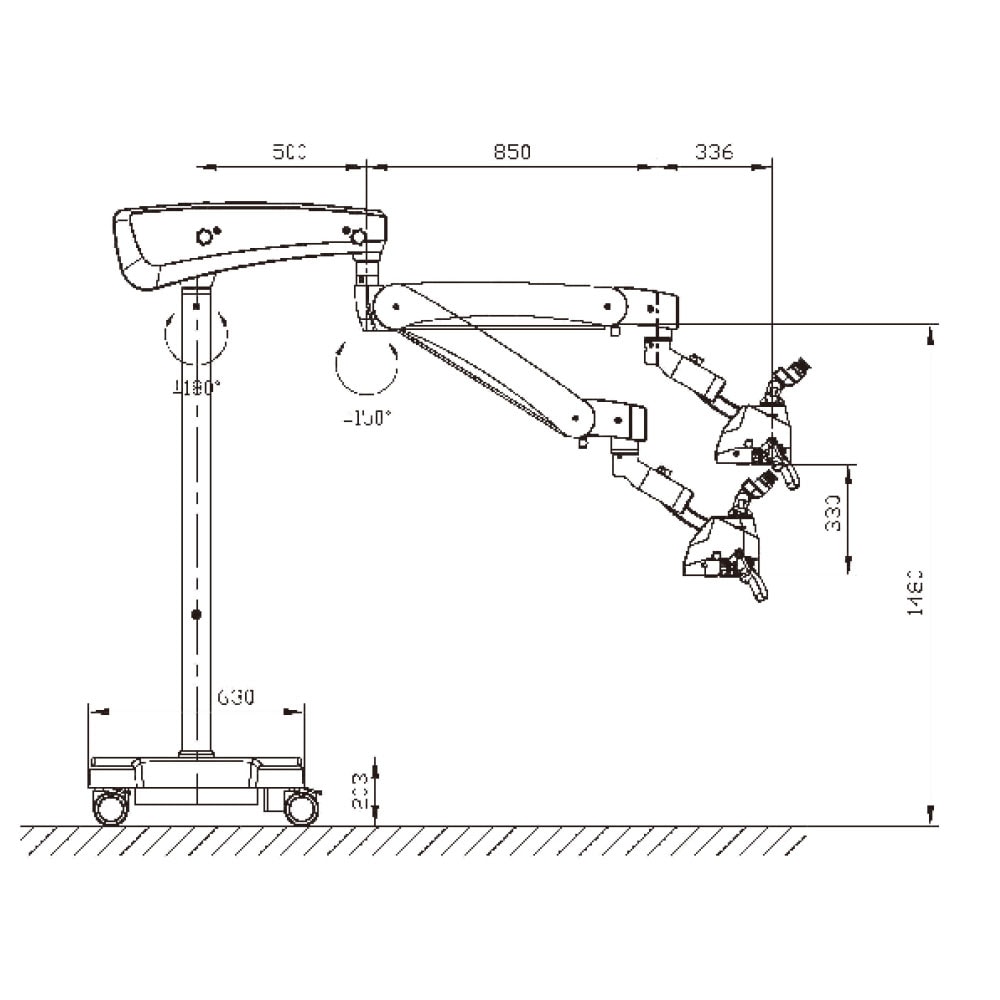

Mobile Trolly	✔	✔	✔	✔	✔

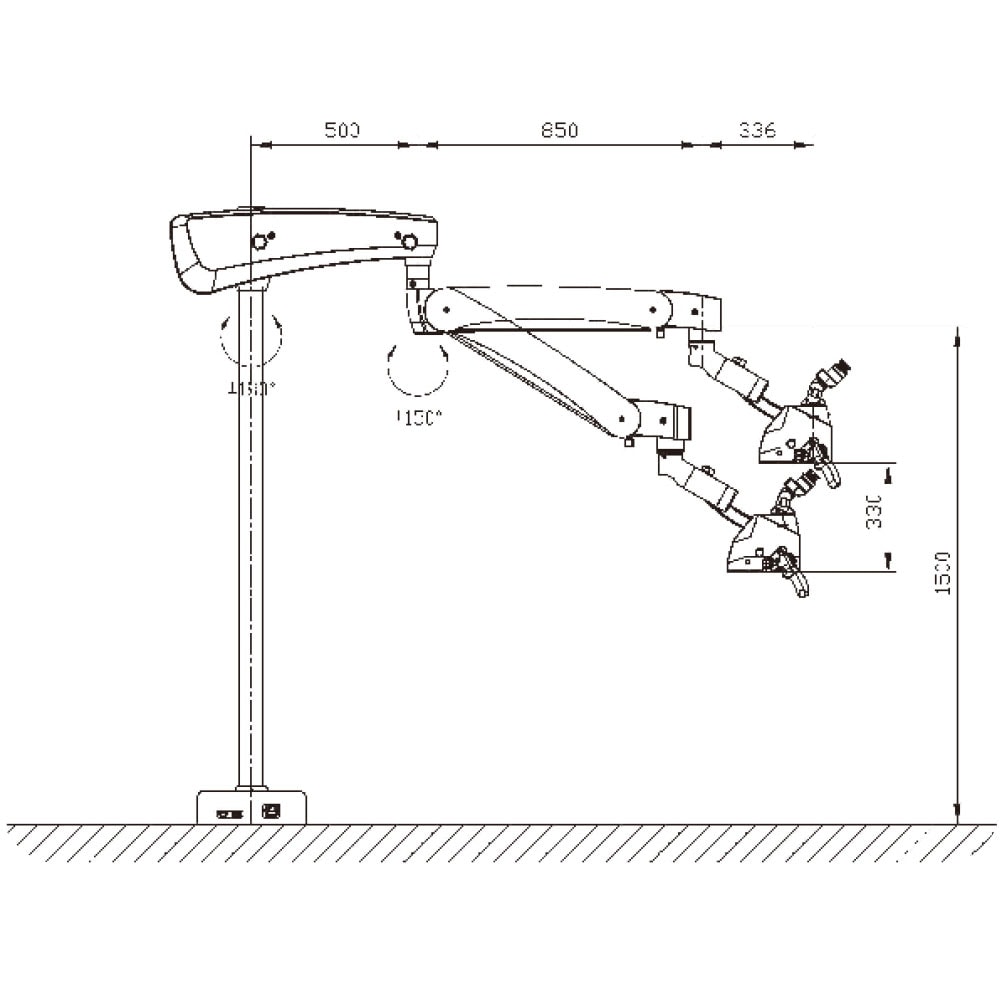

Fixed Floor	✔	✔	✔	✔	✔

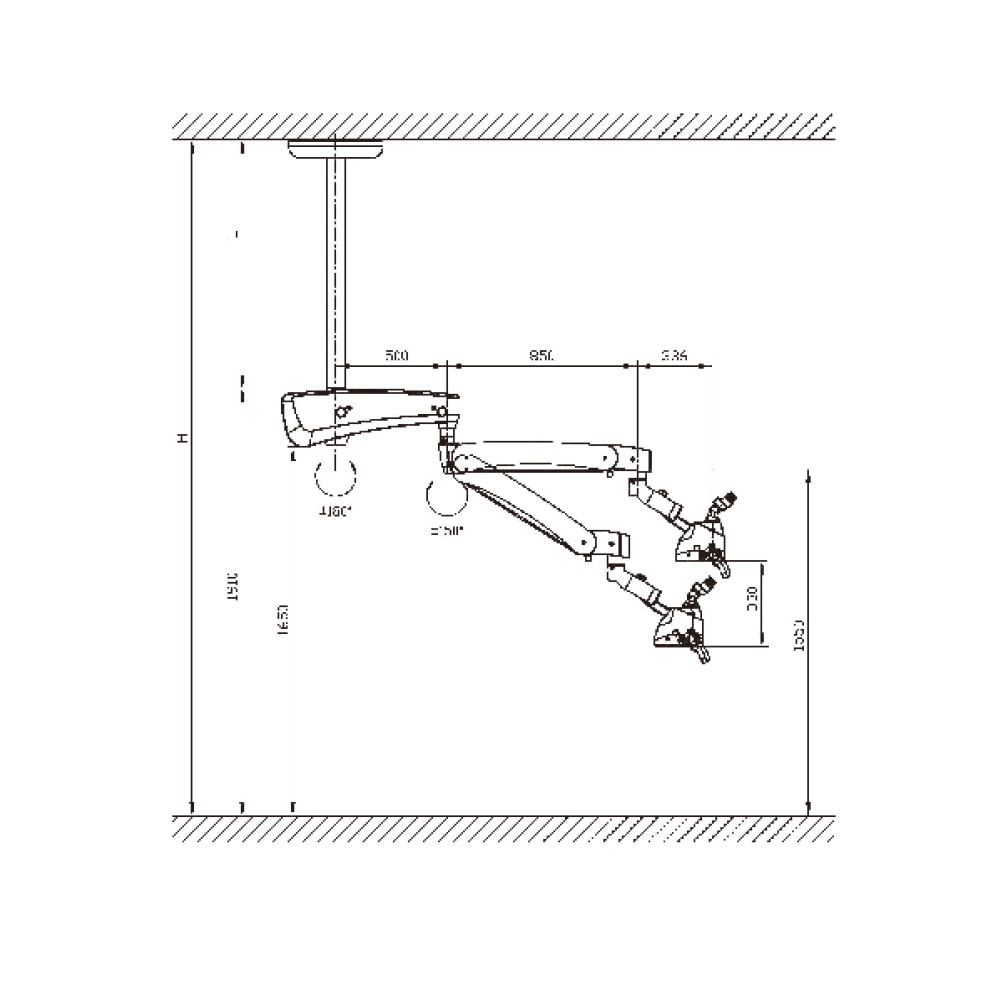

Ceiling		✔	✔	✔	✔

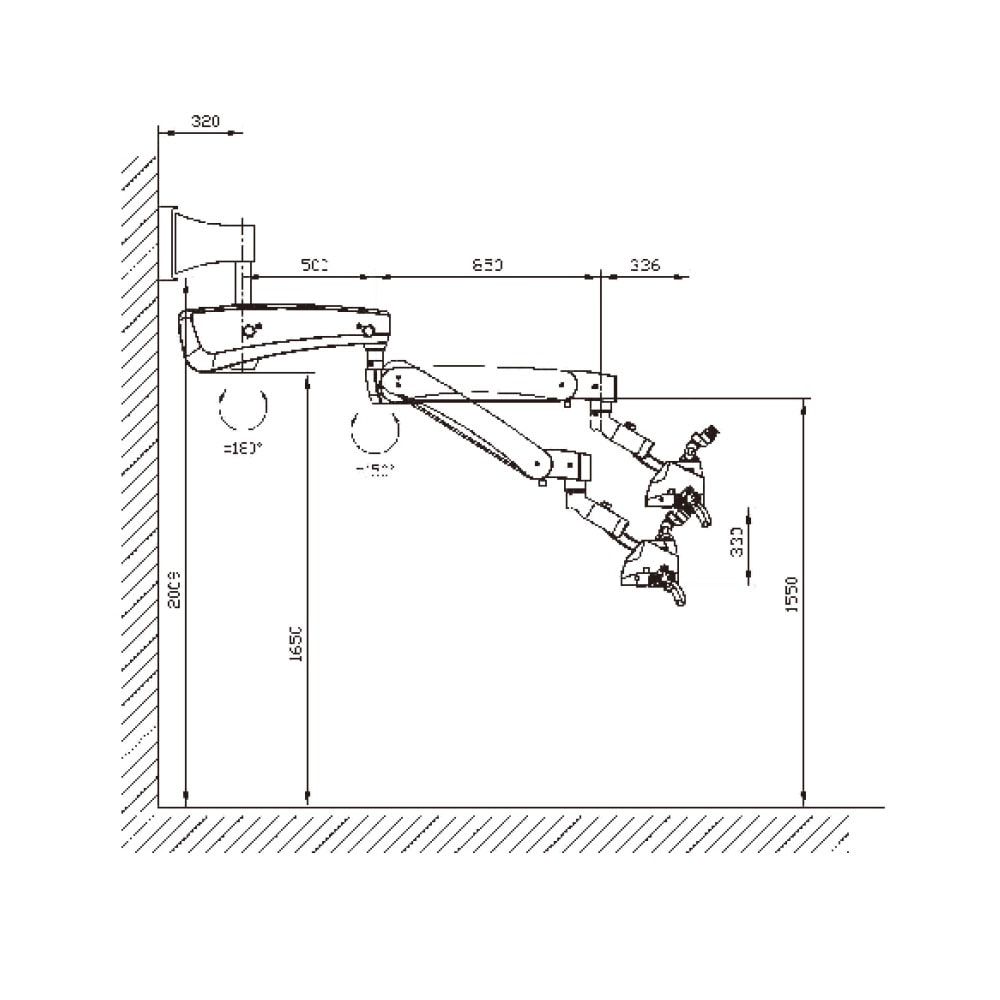

Wall		✔	✔	✔	✔
Table Top		Optional
