Zumax OMS2350
ENT Microscope

Product Overview

The best-selling model within the Zumax range encompasses all the advantages provided by the OMS1950. but offers a 6-step magnification facility and optional HD video camera system and VarioDist objective lens.

Suitable for outpatient use.

Includes:

LED illumination microscope incorporating inclinable binocular head
Option mounting: mobile base, wall, ceiling or fixed floor

Enquire Now

Superb, integrated TrueTone™ LED illumination provides excellent colour characteristics
The working life of over 20,000 hours of continuous use
Balancing arm ensures an ultra-smooth and fluid movement during repositioning
90° inclined binocular, 0 – 180° available as an option
VarioDist® objective lens with a variable working distance of 190 – 300mm
6 step magnification changer
Integrated yellow and green filter
The pendulum function allows the viewing lens to remain in the upright position
Change the direction of the optic pod, without changing the direction of the binocular head
Training is made easy, with the optional high-definition interface that allows remote viewing
Excellent ergonomics, easy to use
Adaptable, wide choice of options regarding eyepiece magnifications, focal lengths and available mountings ensures all user preferences
No replacement bulb costs, reduced power consumption and durable construction

Pendulum function allowing 25º left and right inclination
Brightness control knob
120º balancing arm
VarioDist objective lens – variable working distance 190 – 300mm
Magnification system: 6 step changer – 0.33x, 0.5x, 0.8x, 1.22x, 2x and 3x
Multi-coated, anti reflective optics manufactured in Germany to reduce optical aberration
Tubes: 0 – 180º inclinable tube with PD adjustment

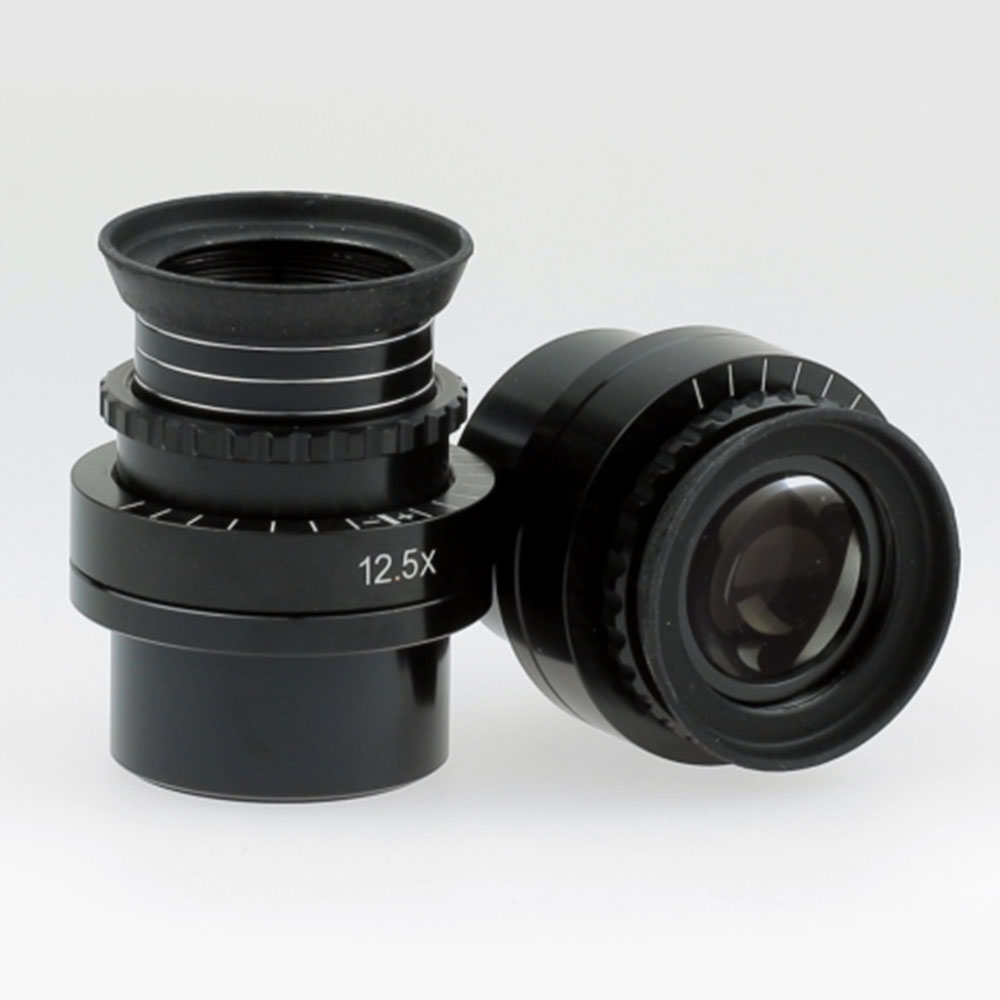

Eyepieces: 12.5x wide field, with integrated eyecups – also suitable for spectacle wearers
Fine focus: 12mm range
Illumination system: 60,000 lux
Handgrip: rotatable
LED guarantee: 10 years

ENT Microscopes Model Comparison

Model	1950	2350	2360	2380	3200
Specification
Magnification	5 Step	3, 5, 6 Step	6 Step	Continues Range	Motorized
High Definition Camera	-	Optional	Optional	Optional	Optional
Objective Lens	F250mm	F250mm	-	-	-
Vario Dist Lens	Optional	Optional	200 - 450mm	200 - 450mm	200 - 450mm
Illumination System - Lux @ 250mm Working Distance	50,000	60,000	70,000	70,000	80,000
0 - 180 Degree Inclinable Binocular	✔	Optional	Optional	Optional	Optional
90 Degree Inclined Binocular	✔	Optional	-	-	-
Eyepiece Magnification - 12.5x	✔	✔	✔	✔	✔
PD Adjusting Knob	✔	✔	✔	✔	✔
Integrated Yellow/ Green Filter	✔	✔	✔	✔	✔
Handgrip 360 Degree Rotatable	✔	✔	✔	✔	✔
Brightness Control Knob		✔	✔	✔	✔
120 Degree Balancing Arm		Optional	✔	✔	✔
Pendulum Function - Right & Left Inclination		✔	✔	✔	✔
Smart Mon LCD Display					✔
Foot Pedal Control					✔
Free Mov Electromagnetic System					✔
Magnetic Stops					✔
Mounting
Mobile Trolly	✔	✔	✔	✔	✔
Fixed Floor	✔	✔	✔	✔	✔
Ceiling		✔	✔	✔	✔
Wall		✔	✔	✔	✔
Table Top		Optional
